2024 KTM SX-E 3 Front Wheel OEM Parts Diagram

Submodel SX-E 3 CHASSIS - 2024

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

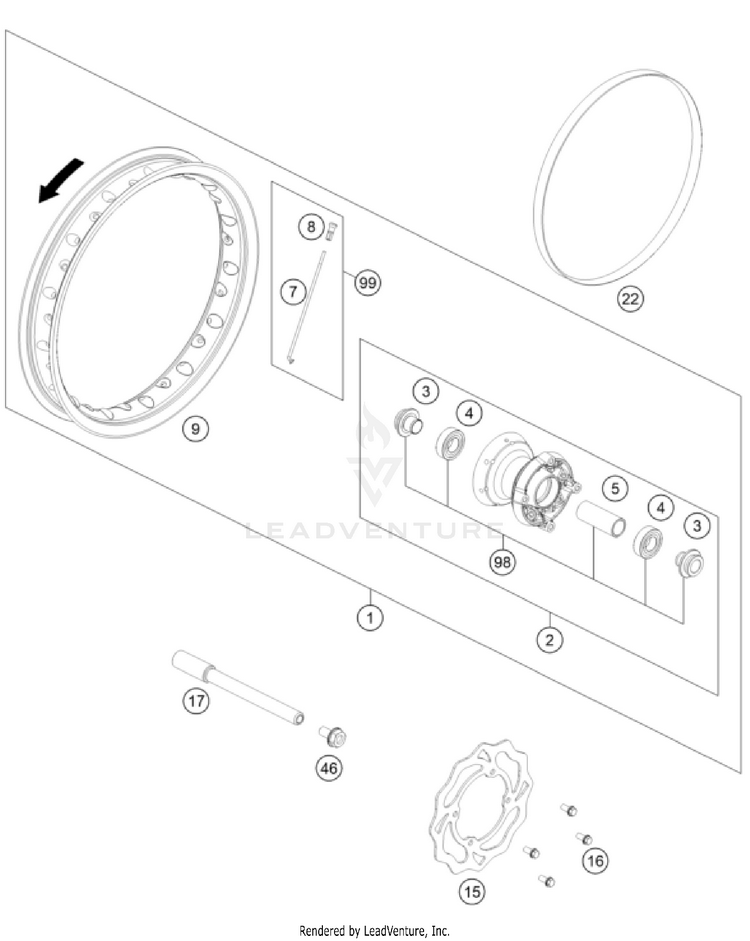

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
145309001244Front wheel 1.6x10"" cmpl. 2023$485.53$412.70Usually ships in 7-10 business days
2A40009010044Front hub cmpl.$212.07$180.26Usually ships in 7-10 business days
345309012000Distance bushing$29.58$25.14Usually ships in 7-10 business days
40625060037GR.BALL BEAR. 6003-2RSH/C3HMTF$35.52$30.1910+ In-Stock
545309011000Spacing tube front$13.63$11.59Usually ships in 7-10 business days
7A40009071100Spoke M3,5X100-10$2.99$2.5410+ In-Stock
8A40010072000

(replaces part #
46210072000)

Spoke nipple M3.5$2.99$2.5410+ In-Stock
94520907050033"Front rim 1,6x10"""$207.78$176.61Usually ships in 7-10 business days
1545209060000BRAKE DISC FRONT JUN/SEN 09$87.99$74.7910+ In-Stock
1659009062013SPECIAL SCREW M6X13 WS=8 10.9$2.99$2.5410+ In-Stock
1745209081100

(replaces part #
45209081000)

Wheel spindle, front$77.43$65.8210+ In-Stock
2245009073000RIM BAND 10'' 22MM$7.14$6.0710+ In-Stock
4649032011000HH COLLAR SCREW M10X20 WS=17$6.92$5.8810+ In-Stock
98A40009015000Front wheel Rep. Kit E-3 | ON DEMAND$115.27$97.98Usually ships in 7-10 business days
9900050000964SPOKE KIT FRONT 12'' '12-'14 | ON DEMAND$122.42$104.06Usually ships in 7-10 business days
