REAR BRAKE CONTROL

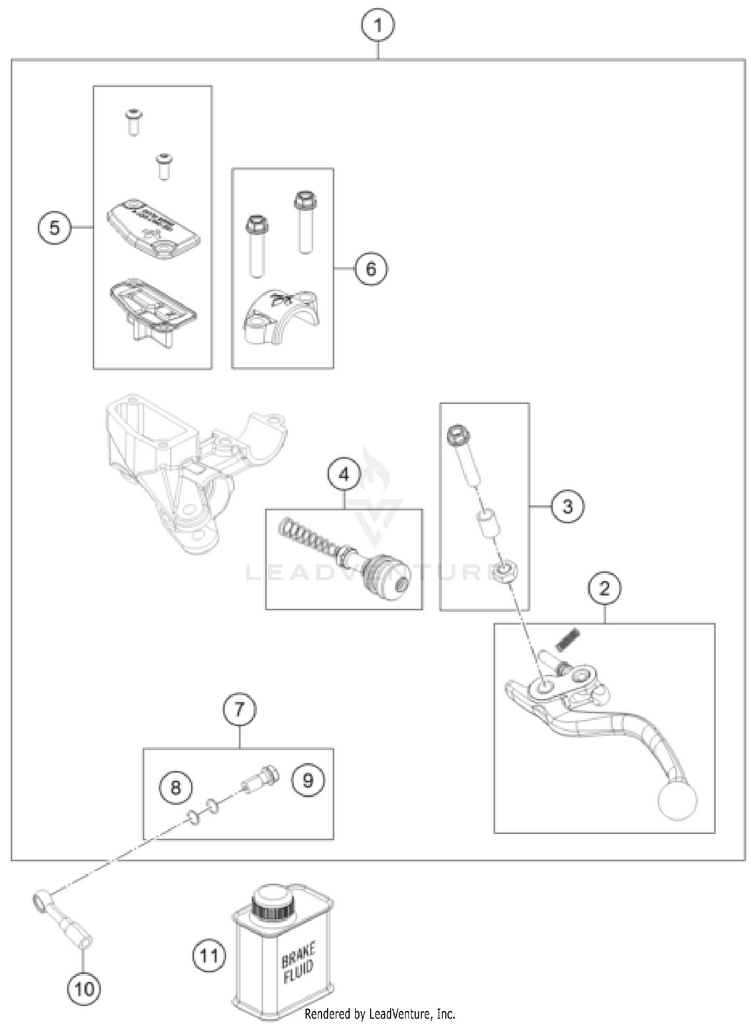

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A20013060000HAND BRAKE CYLINDER$435.81$370.44Usually ships in 7-10 business days
2A40013002000Lever Kit$59.99$50.9910+ In-Stock
370002038000LEVER SCREW CPL.$21.99$18.6910+ In-Stock
472002032000REP. KIT PISTON 10MM$62.25$52.9110+ In-Stock
5A40002003000Reservoir Kit$43.33$36.83Usually ships in 7-10 business days
647213005000Clamp Kit$32.99$28.047 In-Stock
747213025000Screw kit$22.21$18.884 In-Stock
80770080019O-RING 8,00X1,00 FORMULA$2.99$2.5410+ In-Stock
947013025000HOLLOW SCREW BRAKE CYLINDER 03$12.75$10.8410+ In-Stock
10A20013070000brake line rear$115.82$98.45Usually ships in 7-10 business days
1100062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
