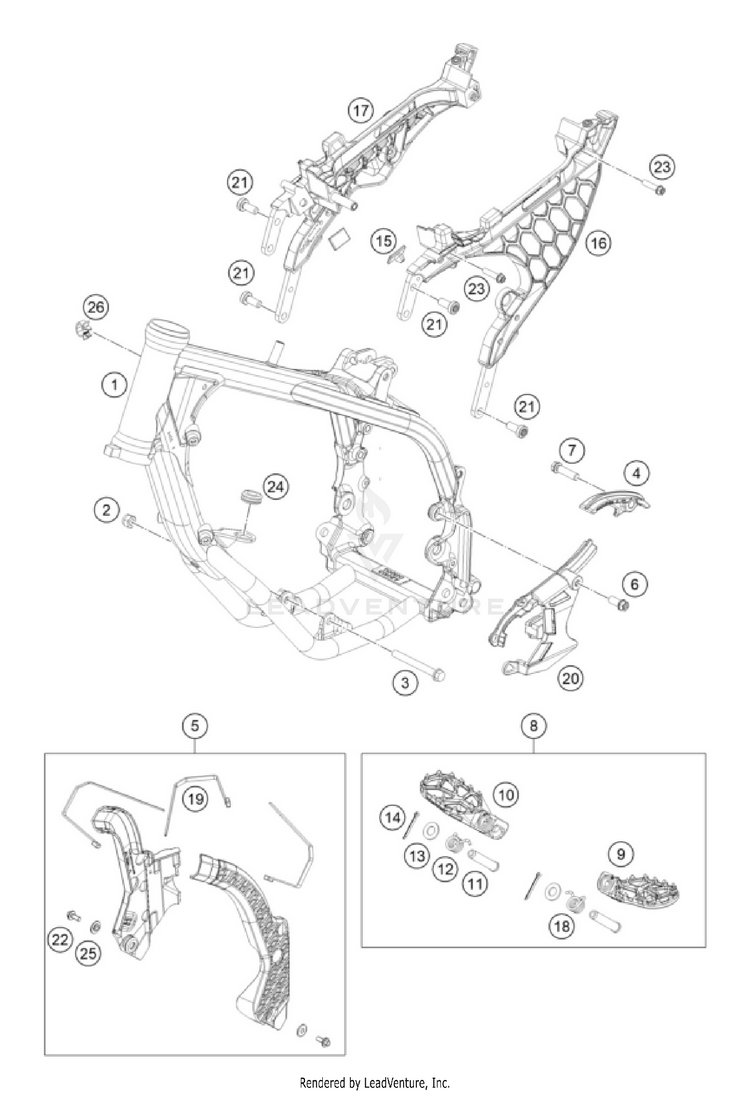

2025 KTM SX-E 5 Frame OEM Parts Diagram

Submodel SX-E 5 US CHASSIS - 2025

Shop Aftermarket Parts

FRAME

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A20103001000EBFrame$1,114.51$1,006.41Usually ships in 7-10 business days
251010086100self-locking nut M8 Cu$3.99$3.3910+ In-Stock
301665080856Hex screw EN 1665-M8x85-10.9$2.99$2.5410+ In-Stock
445303053000Chain slider bottom$11.87$10.0910+ In-Stock
5A40003094000Frame protector set$0.00$0.00Not Shipping
60025060126HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
70025080356HH collar screw M8x35 TX40$4.83$4.1110+ In-Stock
8A40003037033Footpeg set$98.22$83.49Usually ships in 7-10 business days
9A40003040000Footpeg left$82.27$69.93Usually ships in 7-10 business days
10A40003041000Footpeg right$82.27$69.93Usually ships in 7-10 business days
1154803044000PIN FOR FOOT PED 51.5X9.8 MM$14.62$12.4310+ In-Stock
12A46003045000Footrest spring right$1.99$1.6910+ In-Stock
130125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
140094032250

(replaces part #
0094032253)

PIN DIN 0094-3.2X25 NIRO-$2.0810+ In-Stock
1577307040041Isolation pad$2.99$2.5410+ In-Stock
16A40003002010Subframe left$77.54$70.56Usually ships in 7-10 business days
17A40003002020Subframe right$94.15$85.67Usually ships in 7-10 business days
18A46003044000Footrest spring left$1.99$1.6910+ In-Stock
1944011076200CABLE TIE 200/3,6MM BLACK$1.99$1.8810+ In-Stock
20A20103096000Front sprocket cover$24.63$20.94Usually ships in 7-10 business days
210035080206SSHCS M8x20 TX45$6.26$5.3210+ In-Stock
220014050123HH COLLAR SCREW M 5X12 WS=6$2.99$2.5410+ In-Stock
230025060256HH collar screw M6x25 TX30$3.99$3.3910+ In-Stock
2441001052000RUBBER SLEEVE D=12MM$4.99$4.2410+ In-Stock
2554803092060BUSH F. FRAME PROTECTION 03$4.99$4.2410+ In-Stock
2657013072100WIRING HOLDER 16MM$1.99$1.6910+ In-Stock
