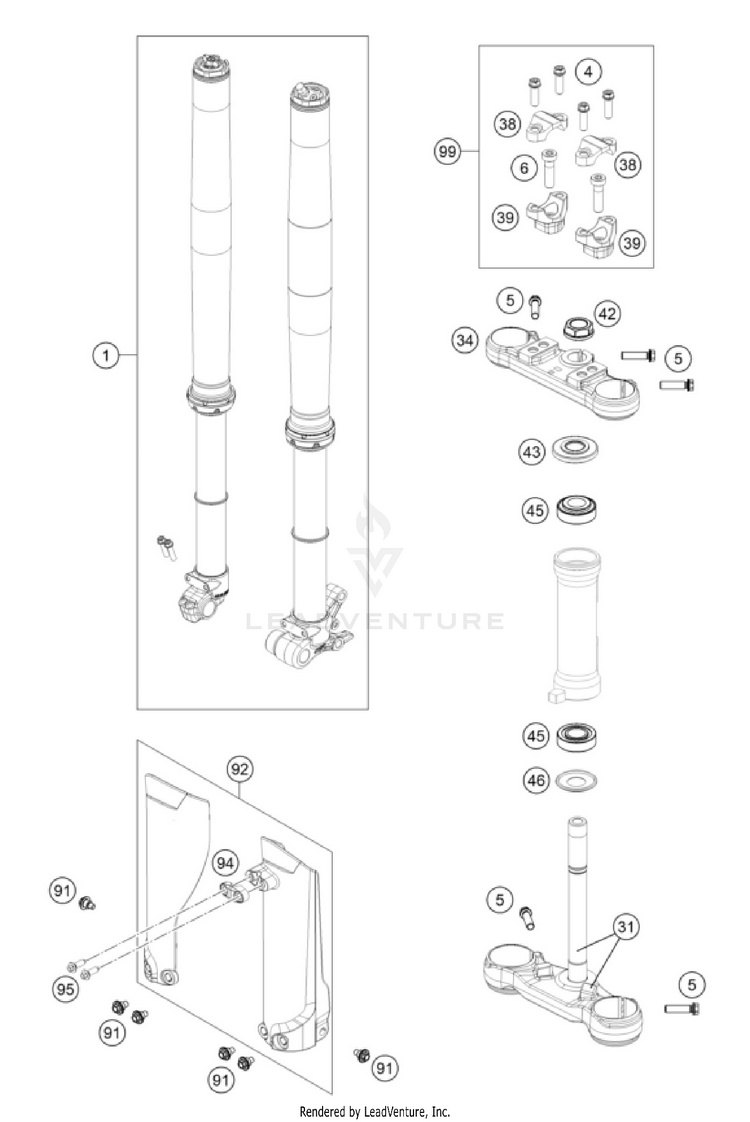

2025 KTM SX-E 5 Front Fork, Triple Clamp OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	A400C102X106000	Fork 50 SX/TC/MC/E 24	$1,569.75	$1,334.29	Usually ships in 7-10 business days
4	0025080256	HH collar screw M8x25	$2.41	$2.05	10+ In-Stock
5	0025080306	HH collar screw M8x30	$3.62	$3.08	10+ In-Stock
6	0032100356S	AH-COLLAR SCREW M10X35 ISA45	$4.99	$4.24	10+ In-Stock
31	45301032022	Bottom triple clamp, complete, 2 rings	$244.85	$208.12	Usually ships in 7-10 business days
34	45301034122	upper triple clamp	$170.27	$144.73	Usually ships in 7-10 business days
38	77201038000	HANDLEBAR CLAMP 28MM	$29.47	$25.05	10+ In-Stock
39	59401039047	HANDLEB.SUPP. D=28MM H=47MM 05 \| ON DEMAND	$39.48	$33.56	Usually ships in 7-10 business days
39	59401039032	HANDLEB.SUPP. D=28MM H=32MM 05 \| ON DEMAND	$43.00	$36.55	10+ In-Stock
39	59401039037	HANDLEB.SUPP. D=28MM H=37MM 05	$40.14	$34.12	10+ In-Stock
39	59401039042	HANDLEB.SUPP. D=28MM H=42MM 05 \| ON DEMAND	$42.67	$36.27	5 In-Stock
42	59030029000	HH NUT M20X1,5 WS=27 RIGHT	$10.44	$8.87	10+ In-Stock
43	A53501084000	Steering head seal	$29.58	$25.14	10+ In-Stock
45	49001081000	TAPERED ROLLER BEARING 32004X	$49.60	$42.16	10+ In-Stock
46	0780000304400	Steering head seal	$10.00	$8.50	10+ In-Stock
91	59001092050	SPECIAL SCREW M6X12,5 WS=8	$2.99	$2.54	10+ In-Stock
92	46301094000EBF	Fork protection kit SX-E 25 \| with Decal	$105.26	$89.47	Usually ships in 7-10 business days
94	46301085000EB	Clamp for brake hose	$13.29	$11.30	Usually ships in 7-10 business days
95	0017060206	SCREW F. PLASTIC K60X20AL SW6	$3.99	$3.39	10+ In-Stock
99	00050000921	HANDLEBAR SUPPORT KIT D28/H37	$127.15	$108.08	10+ In-Stock

1

Fork 50 SX/TC/MC/E 24

$1,569.75

$1,334.29

Usually ships in 7-10 business days
