2026 KTM 250 SX (Fuel Injected) Cooling System OEM Parts Diagram

Submodel 250 SX ENGINE - 2026

Shop Aftermarket Parts

COOLING SYSTEM

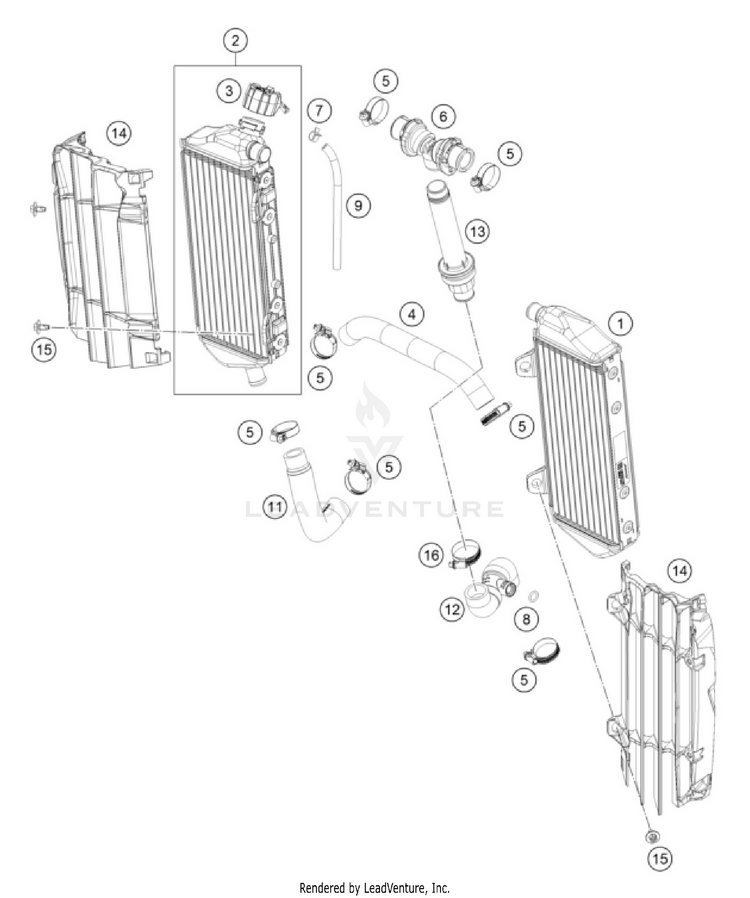

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A46035007000Radiator left$129.02$109.6710+ In-Stock
2A46035008100radiator right$124.99$106.24
372035016000RADIATOR CAP 1,8 BAR$24.63$20.9410+ In-Stock
4A46035025000Pre-formed hose radiator left/right$13.30$11.3010+ In-Stock
50310000902900Hose clip 18-29$2.99$2.5410+ In-Stock
6A46035071044Y-piece cmpl.$20.56$17.4810+ In-Stock
759007017000CLAMP YDNAC 10096F (9,6MM)$2.99$2.5410+ In-Stock
80770100020o-ring 10.00x2.00 silicone$2.99$2.5410+ In-Stock
950335030001PVC-HOSE 6X9 | ON DEMAND$7.91$6.7210+ In-Stock
11A44035024000Pre-formed hose engine/radiator right$21.99$18.6910+ In-Stock
12A44035020044Hose system, temperature sensor 250/300$37.50$31.882 In-Stock
13A44035073033Threaded bushing w. thermo.$89.42$76.016 In-Stock
14A46035036044C1Radiator protection set, black$62.47$53.1010+ In-Stock
150900000601203HH ISR collar screw M6x12-10.9 ISA30$1.99$1.6910+ In-Stock
160310000903200Hose clip 20-32$2.99$2.5410+ In-Stock
