2026 KTM 250 SX (Fuel Injected) Exhaust Control OEM Parts Diagram

Submodel 250 SX ENGINE - 2026

Shop Aftermarket Parts

EXHAUST CONTROL

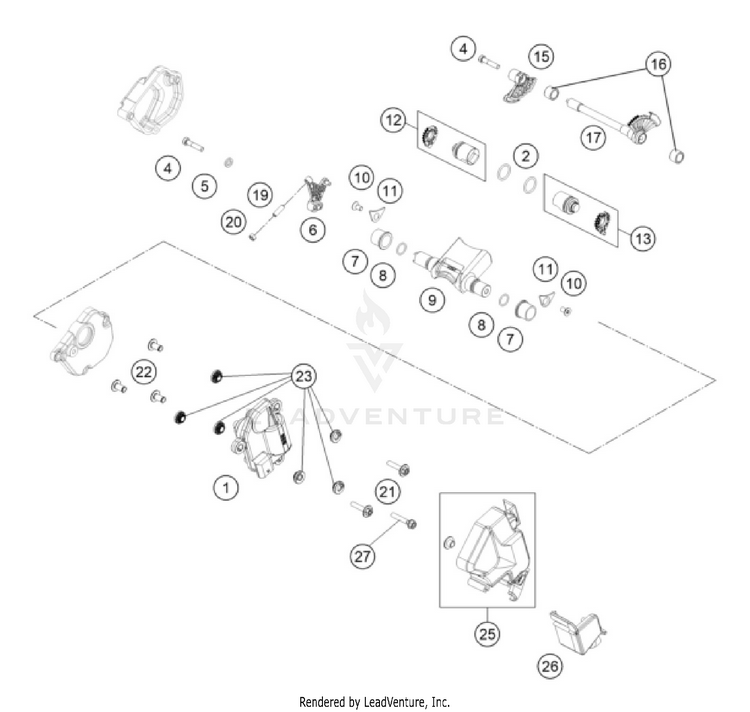

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A45041072033Exhaust control actuator cpl.$246.94$209.9010+ In-Stock
20770160021O-RING 16,00X2,00 VITON$3.99$3.3910+ In-Stock
40012050253SBolt DIN 6912 - M5x25 SS$1.99$1.6910+ In-Stock
550233041000PAIR OF WASHERS M 6 NORDLOCK$4.99$4.2410+ In-Stock
6A44037380000control flap lever$41.02$34.87Usually ships in 7-10 business days
750437023100exaust flap bushing$6.15$5.2310+ In-Stock
807700120151O-ring 12x1.5 FPM75$1.99$1.6910+ In-Stock
9A44037220000control flap 250 raw part$98.99$84.14Usually ships in 7-10 business days
100019050106Shex lobe countersunc screw M5x10 - 10.9$2.99$2.5410+ In-Stock
1175030085100

(replaces part #
75030085000)

Retaining bracket crankshaft bearing$1.99$1.6910+ In-Stock
12A44037362044Power valve right cmpl.$51.91$44.127 In-Stock
13A44037361044Power valve left cmpl.$51.91$44.12Usually ships in 7-10 business days
15A44037365000controlgate right$38.93$33.09Usually ships in 7-10 business days
160618101410needle sleeve HK 1010 10x14x10$7.03$5.9810+ In-Stock
17A44037370033

(replaces part #
A44037070033)

Intermediate shaft cmpl.$69.51$59.08Usually ships in 7-10 business days
190913050160Grub screw M5x16 with AH$1.99$1.692 In-Stock
200934050040Nut M5 SW7$1.99$1.692 In-Stock
210000240502500SHH collar screw, M5x25, ISA 30$1.99$1.6910+ In-Stock
22A45041072010Actuator bushing$6.37$5.73Usually ships in 7-10 business days
23A45041072005Damper actuator$4.99$4.49Usually ships in 7-10 business days
25A42037096000Actuator protection cap$7.58$6.82Usually ships in 7-10 business days
26A42037096020Actuator protection cap$8.68$7.3810+ In-Stock
270025050306HH COLLAR SCREW M5X30 TX30$2.99$2.5410+ In-Stock
