1968 Yamaha DT1/1B/1C Tachometer OEM Parts Diagram

Submodel DT1 - 1968

Shop Aftermarket Parts

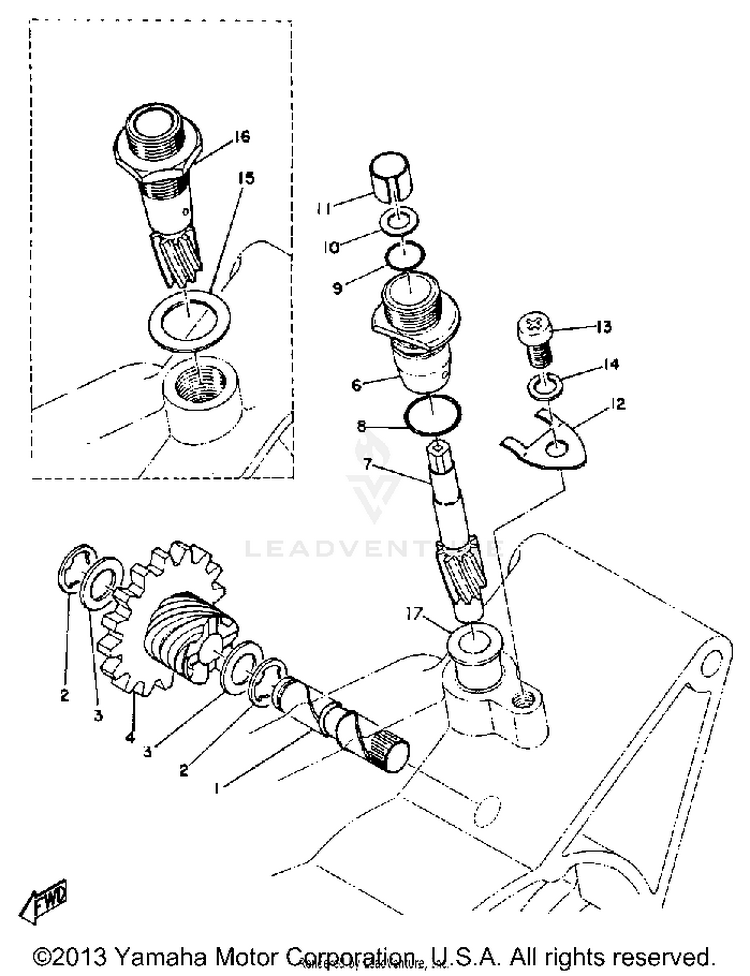

TACHOMETER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1214-17861-09-00AXLE, DRIVE GEAR$8.28$7.45Usually ships in 7-10 business days
299080-09600-00

(replaces part #
99001-09600-00)

CIRCLIP (E) (99001-09600-00)$3.20$2.754 In-Stock
3214-17837-00-00SHIM (10.2-16-1)$4.35$3.92Not Shipping
4214-17831-01-00GEAR, DRIVE$30.99$25.41Usually ships in 7-10 business days
6353-17810-00-00HOUSING ASSEMBLY, TACH (214-178 | E/033835$79.99$62.39Usually ships in 7-10 business days
7214-17841-01-00GEAR, DRIVEN | E/033835$37.99$31.15Not Shipping
893210-13016-00O-RING | E/033835$8.49$6.623 In-Stock
993210-07100-00O-RING | E/033835$7.49$5.842 In-Stock
10214-17847-00-00SHIM (7.5-10.8-0.4) | E/033835$4.56$4.10Not Shipping
1190383-10005-00BUSH, FORMED (214-17815-00) | E/033835$4.40$3.96Not Shipping
125U7-17812-00-00STOPPER | E/033835$7.99$7.19Not Shipping
1398580-06010-00SCREW, PAN HEAD (92503-06010-00 | E/033835$9.49$7.409 In-Stock
1492995-06100-00WASHER, SPRING | E/033835$3.55$3.0510+ In-Stock
15214-15353-00-00GASKET, DRAIN$2.17$1.95Usually ships in 7-10 business days
16353-17810-00-00HOUSING ASSEMBLY, TACH (214-178 | 382 N/A SEE NOTE$79.99$62.39Usually ships in 7-10 business days
1790381-08002-00BUSH, SOLID$12.49$9.744 In-Stock
