1971 Yamaha JT1/1L Electrical OEM Parts Diagram

Submodel JT1L - 1971

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL

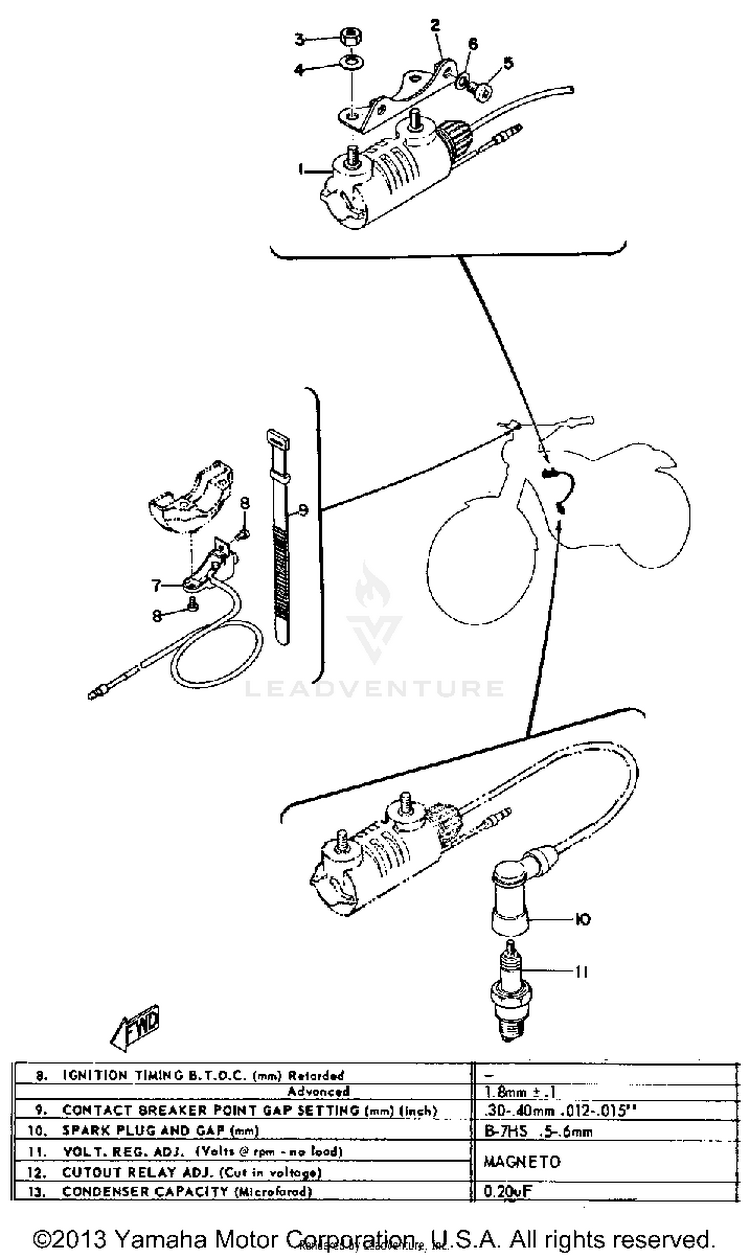

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1248-82310-11-00IGNITION COIL ASSEMBLY$87.99$68.63Not Shipping
2248-82316-00-00BRACKET, IGN COIL$4.15$3.74Usually ships in 7-10 business days
395380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
597885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
7261-83976-00-00SWITCH, HANDLE 1$28.27$23.18Not Shipping
898580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
9437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
1056J-82370-00-00PLUG CAP ASSY$70.99$55.372 In-Stock
11B7H-S0000-00-00

(replaces part #
NGK-B7HS0-00-00)

NGK SPARK PLUG B7HS$4.95$4.2610+ In-Stock
