1971 Yamaha JT1/1L Frame OEM Parts Diagram

Submodel JT1L - 1971

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

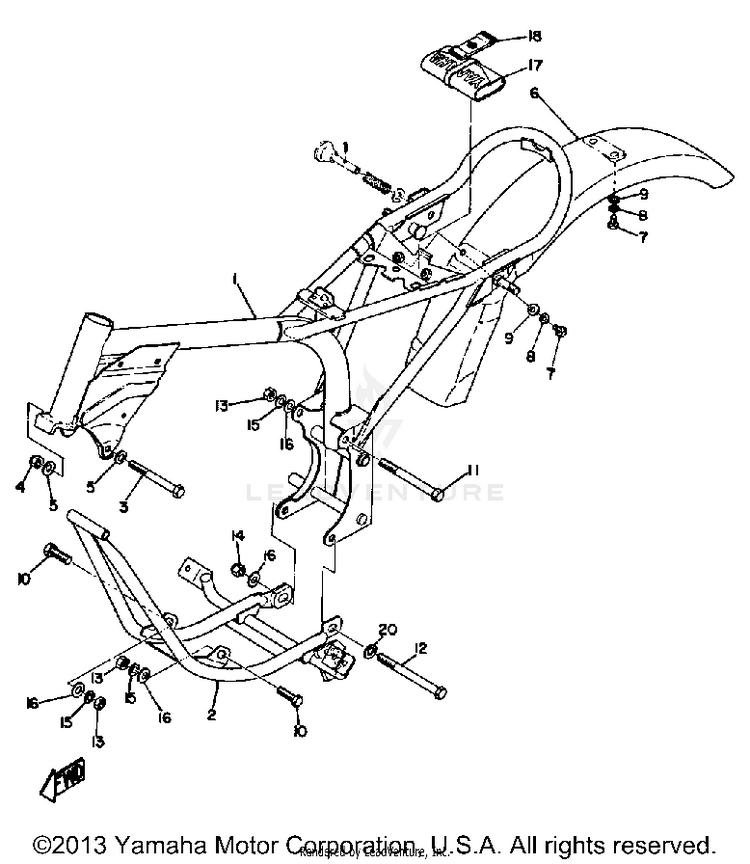

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-353-W2810-01-00

(replaces part #
353-28100-10-00)

TOOL KIT$71.99$56.15Not Shipping
-288-21110-00-33FRAME$130.99$102.17Usually ships in 7-10 business days
-288-21110-01-33FRAME$110.99$86.57Usually ships in 7-10 business days
197013-06012-00BOLT$6.49$5.0610+ In-Stock
2288-21110-02-33FRAME$172.99$134.93Usually ships in 7-10 business days
397023-08090-00BOLT (97321-08090)$3.40$3.06Not Shipping
495617-08100-00

(replaces part #
95611-08100-00)

NUT, U$10.49$8.1810+ In-Stock
592990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
6288-21610-01-01FENDER, REAR | DESERT ORANGE$31.99$26.23Not Shipping
797017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
992990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1097013-08030-00

(replaces part #
97313-08030-00)

BOLT$3.80$3.2710+ In-Stock
1197027-08140-00

(replaces part #
97021-08140-00)

BOLT, HEXAGON$7.49$6.74Not Shipping
1295817-08115-00

(replaces part #
95821-08115-00)

BOLT, FLANGE$9.49$7.402 In-Stock
1395333-08600-00NUT$3.80$3.4710+ In-Stock
1495617-08100-00

(replaces part #
95611-08100-00)

NUT, U$10.49$8.1810+ In-Stock
1592990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
1692990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
17353-W2810-01-00

(replaces part #
207-28100-10-00)

TOOL KIT$71.99$56.15Not Shipping
1821V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
