1972 Yamaha RT2 Crank Piston OEM Parts Diagram

Submodel RT2 - 1972

Shop Aftermarket Parts

CRANK PISTON

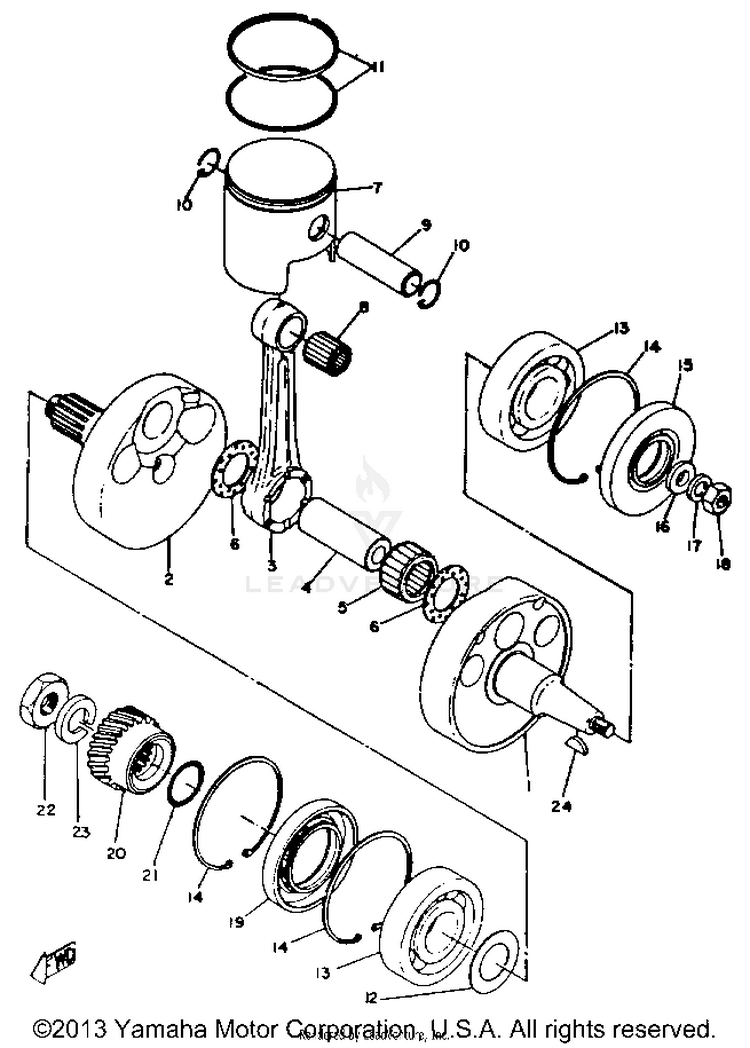

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90209-25085-00WASHER, (90209-25220)$13.49$10.524 In-Stock
-2X4-11681-00-00PIN, CRANK 1$88.99$69.41Usually ships in 7-10 business days
-275-11633-00-00PIN, PISTON$38.99$30.412 In-Stock
-156-11564-00-04SHIM, CRANK 4 (25-44-0.5)$4.25$3.82Not Shipping
-438-11636-01-00PISTON 2 O/S 0.50 (0.50MM 2ND O | ALTERNATE PARTS$193.99$151.31Not Shipping
-438-11635-01-00PISTON 1 O/S 0.25 (0.25MM 1ST O | ALTERNATE PARTS$193.99$151.31Not Shipping
-93310-524K4-00BEARING$129.99$101.39Usually ships in 7-10 business days
-214-11412-01-00CRANK 1$145.99$113.87Usually ships in 7-10 business days
-214-11422-00-00CRANK 2$91.93$71.71Usually ships in 7-10 business days
-311-11400-01-00CRANKSHAFT ASSEMBLY$196.99$157.84Usually ships in 7-10 business days
-308-11610-01-00PISTON RINGSET STD$44.99$36.89Not Shipping
-275-11422-00-00CRANK 2$77.85$60.72Usually ships in 7-10 business days
-311-11610-10-00PISTON RINGSET 1ST (1ST O.S) | ALTERNATE PARTS$70.44$54.94Usually ships in 7-10 business days
-510-11651-00-00ROD, CONNECTING$106.99$83.45Not Shipping
-308-11631-01-96PISTON STD (.96MM STD)$122.99$95.93Not Shipping
-308-11610-11-00PISTON RINGSET 1ST (1ST O.S) | ALTERNATE PARTS$91.99$71.75Usually ships in 7-10 business days
-308-11635-01-00PISTON 1 O/S 0.25 (0.25MM 1ST O | ALTERNATE PARTS$122.99$95.93Usually ships in 7-10 business days
-311-11610-00-00PISTON RINGSET STD (STD)$70.86$55.27Not Shipping
-308-11636-01-00PISTON 2 O/S 0.50 (0.50MM 2ND O | ALTERNATE PARTS$122.99$95.93Usually ships in 7-10 business days
-311-11610-20-00PISTON RINGSET 2ND (2ND O.S) | ALTERNATE PARTS$70.44$54.94Usually ships in 7-10 business days
-214-11412-02-00CRANK 1$76.68$59.81Usually ships in 7-10 business days
1275-11400-00-00CRANKSHAFT ASSEMBLY$262.99$205.13Not Shipping
2214-11422-01-00CRANK 2$72.79$56.78Usually ships in 7-10 business days
3431-11651-00-00ROD, CONNECTING$93.99$73.31Not Shipping
4214-11681-00-00PIN, CRANK 1 (DIA. 24MM)$27.22$22.32Usually ships in 7-10 business days
593310-425P2-00

(replaces part #
93310-425N4-00)

BEARING, CYLINDRICAL$82.99$64.733 In-Stock
690209-24073-00WASHER, SPECIAL SHAPE$16.49$13.52Usually ships in 7-10 business days
7438-11631-01-96PISTON STD (.96MM STD) (311-116$193.99$151.31Not Shipping
893310-218A6-00BEARING$42.99$33.5310+ In-Stock
9214-11633-00-00PIN, PISTON$36.99$28.856 In-Stock
1093450-20026-00CIRCLIP$9.49$7.4010+ In-Stock
11308-11610-21-00PISTON RINGSET 2ND (2ND O.S) | ALTERNATE PARTS$94.99$74.09Not Shipping
12156-11564-00-03SHIM, CRANK 4 (25-44-0.3)$6.49$5.84Not Shipping
1393306-30630-00BEARING$79.99$62.395 In-Stock
1493420-72023-00CIRCLIP, R-TYPE$2.39$2.15Not Shipping
1593103-30044-00OIL SEAL, SW-TYPE (SW-30-72-10)$10.49$8.60Not Shipping
1690201-12535-00WASHER, PLATE$10.49$8.186 In-Stock
1792990-12100-00

(replaces part #
92901-12100-00)

WASHER, SPRING$9.49$7.405 In-Stock
1890170-12347-00NUT, HEXAGON$11.49$8.963 In-Stock
1993103-42045-00OIL SEAL, SW-TYPE (SW-42-72-10)$7.49$6.74Not Shipping
20214-16111-00-00GEAR, PRI DRIVE$32.12$26.34Usually ships in 7-10 business days
2193210-24235-00

(replaces part #
93210-25070-00)

O-RING$8.49$7.078 In-Stock
2290170-18089-00NUT$6.99$6.29Not Shipping
23214-16119-00-00SPRING, BELLEVILLE$11.99$9.831 In-Stock
2490280-05001-00

(replaces part #
90280-16053-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
2590280-05014-00KEY, WOODRUFF$10.49$8.60Usually ships in 7-10 business days
