1972 Yamaha RT2 Stand Foot Rest Brake Pedal OEM Parts Diagram

Submodel RT2 - 1972

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

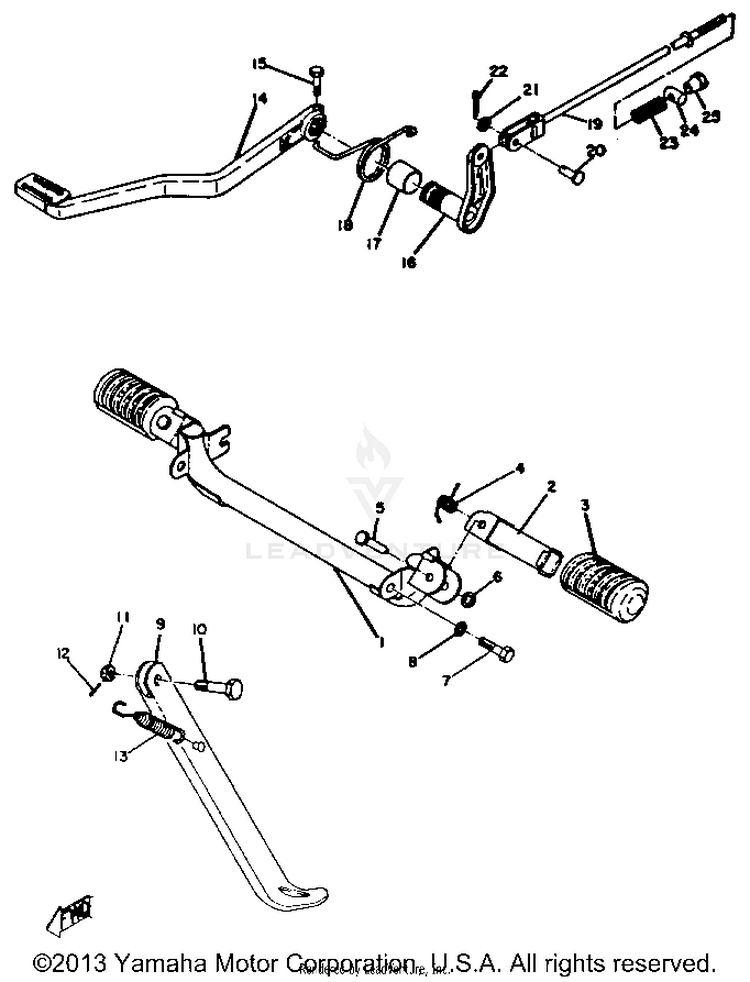

STAND FOOT REST BRAKE PEDAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1214-27411-00-00FOOTREST 1$60.99$47.57Not Shipping
2214-27421-00-00FOOTREST 2$41.99$32.755 In-Stock
3214-27413-00-00COVER, FOOTREST$25.99$20.278 In-Stock
490508-20023-00SPRING, TORSION$4.25$3.6610+ In-Stock
590243-08006-00PIN$13.49$10.526 In-Stock
690201-06042-00WASHER, PLATE$10.49$8.185 In-Stock
797013-08020-00

(replaces part #
97313-08020-00)

BOLT (661)$1.80$1.554 In-Stock
892990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
9214-27311-01-00STAND, SIDE$43.99$36.07Not Shipping
1090102-10006-00BOLT, WITH HOLE (278-27317-00)$11.49$8.963 In-Stock
1195307-10900-00

(replaces part #
95303-10900-00)

NUT, CASTLE$11.49$8.963 In-Stock
1291490-20025-00PIN, COTTER$1.99$1.7110+ In-Stock
1390506-26270-00

(replaces part #
90507-29004-00)

SPRING, TENSION$17.49$13.6410+ In-Stock
14214-27211-00-33PEDAL, BRAKE | YAMAHA BLACK$32.99$27.05Not Shipping
1597017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
16214-27212-00-00SHAFT, BRAKE PEDAL$30.48$24.99Usually ships in 7-10 business days
1790387-20177-00COLLAR$7.99$7.19Not Shipping
1890508-40077-00SPRING, TORSION (214-27216-00)$3.00$2.58Not Shipping
19275-27231-00-00ROD, BRAKE$10.66$8.74Not Shipping
2090240-06006-00PIN, CLEVIS$10.49$8.185 In-Stock
2192990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
2291490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
2390501-10245-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
2490249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
2590179-06411-00NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
