1973 Yamaha CT175 Exhaust OEM Parts Diagram

Submodel AT3_CT3 - CT3 - 1973

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

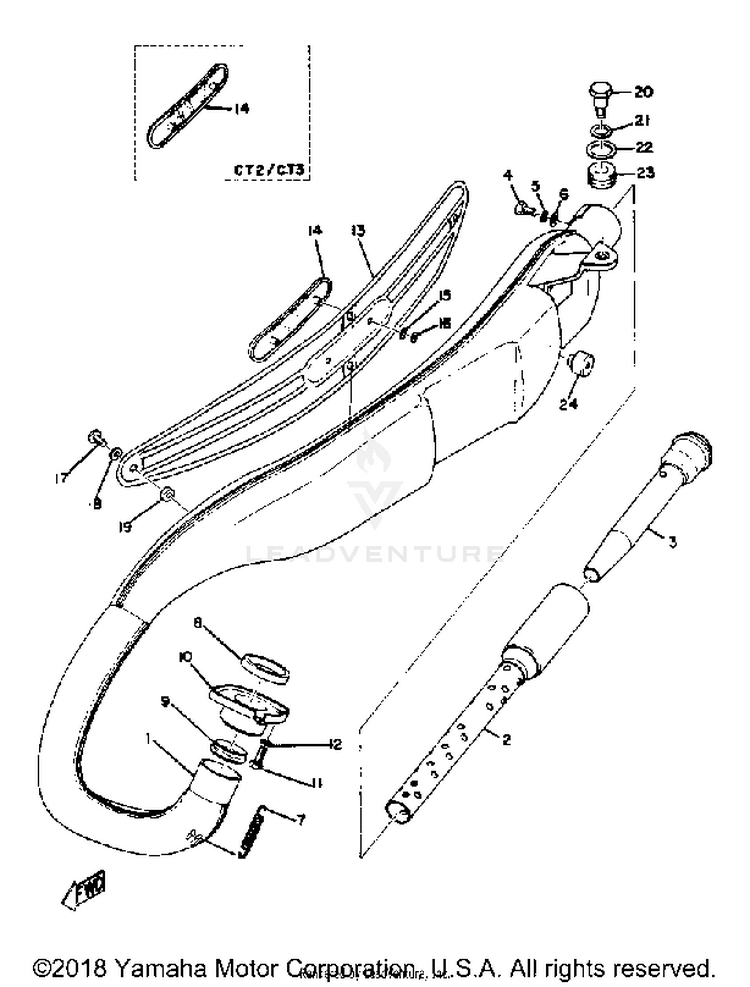

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1316-14610-30-00EXHAUST PIPE ASSEMBLY L$166.99$130.25Not Shipping
1314-14610-30-00EXHAUST PIPE ASSEMBLY L$171.99$134.15Usually ships in 7-10 business days
2214-14753-01-00SILENCER, EXHAUST$80.99$63.17Not Shipping
3261-14752-30-00PIPE, OUTLET$36.35$29.81Not Shipping
497017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
692990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
790506-12029-00SPRING, TENSION$6.49$6.45
83PA-14613-10-00

(replaces part #
152-14613-00-00)

GASKET, EXHAUST PIPE$16.49$12.8610+ In-Stock
9248-14623-10-00

(replaces part #
248-14623-00-00)

GASKET$8.49$6.6210+ In-Stock
102K5-14612-00-00NUT, RING$18.99$15.57Not Shipping
1197D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
13314-14718-30-00PROTECTOR, MUFF 1$26.68$21.88Not Shipping
14314-14729-30-00EMBLEM, PROTECTOR$9.48$8.53Usually ships in 7-10 business days
14316-14729-30-00EMBLEM, PROTECTOR$9.48$8.53Not Shipping
1590202-04003-00WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
1690183-04005-00NUT, SPRING-$1.6710+ In-Stock
1798980-06012-00

(replaces part #
98903-06012-00)

SCREW, BIND$9.49$7.4010+ In-Stock
1890202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1990202-05188-00

(replaces part #
90202-05005-00)

WASHER, PLATE$9.49$7.404 In-Stock
2090109-08391-00BOLT (276-14719-00)$4.85$4.36Not Shipping
2190201-126A7-00

(replaces part #
90201-12190-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
2290201-18262-00WASHER, PLATE$10.49$8.1810+ In-Stock
23168-21638-00-00DAMPER 1$10.99$8.5710+ In-Stock
24116-27114-00-00STOPPER, MAIN STAND$11.99$9.353 In-Stock
