1973 Yamaha CT175 Flywheel Magneto OEM Parts Diagram

Submodel AT3_CT3 - CT3 - 1973

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

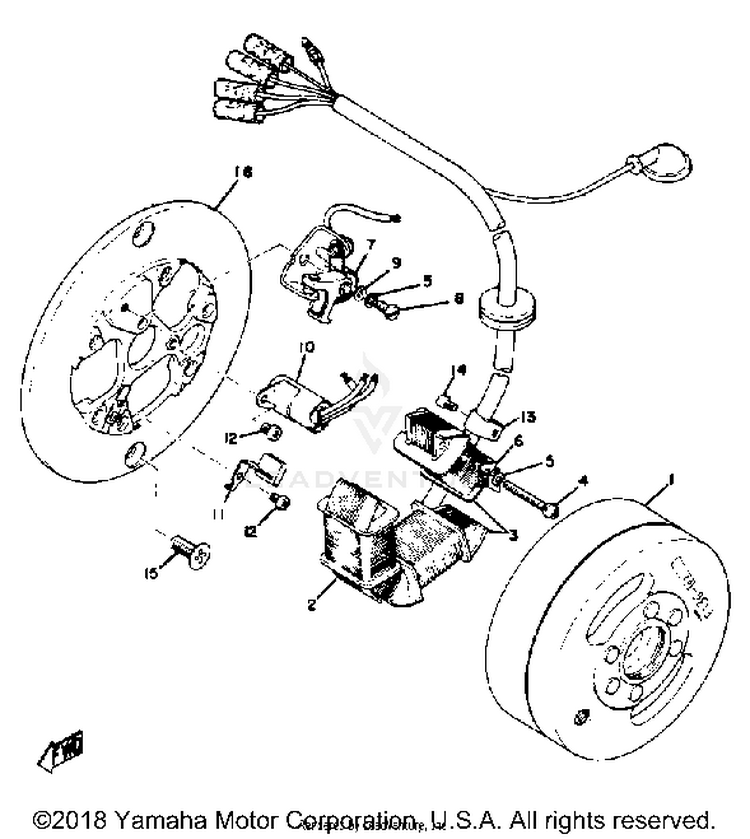

FLYWHEEL MAGNETO

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1315-81350-10-00ROTOR ASSEMBLY$158.99$124.01Usually ships in 7-10 business days
1314-81300-10-00FLYWHL MAGNETO ASSEMBLY$217.99$170.03Not Shipping
2277-81312-10-00COIL, SOURCE$82.99$64.73Not Shipping
3314-81313-10-00COIL, LIGHTING 1$91.99$71.75Not Shipping
498517-04025-00

(replaces part #
97602-04125-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
592990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
6277-81332-10-00PLATE, TIMING$3.36$3.02Usually ships in 7-10 business days
7207-81321-90-00CONTACT BRKR ASSEMBLY$82.99$64.73Not Shipping
8110-81346-21-00SCREW, PAN HEAD$5.99$4.676 In-Stock
992990-04200-00WASHER, PLAIN$2.00$1.7210+ In-Stock
10277-81326-90-00CONDENSER 2$15.99$13.11Not Shipping
11207-81331-10-00LUBRICATOR$6.99$6.29Not Shipping
1298517-04006-00

(replaces part #
97601-04106-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
13109-81328-11-00CLAMP$9.49$8.54Not Shipping
1498517-04006-00

(replaces part #
97601-04106-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1598603-06012-00SCREW, OVAL HEAD (92701-06012)$1.85$1.66Not Shipping
16314-81310-11-00BASE ASSEMBLY$63.93$49.87Usually ships in 7-10 business days
