1974 Yamaha DT250 Headlight OEM Parts Diagram

Submodel DT250A - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

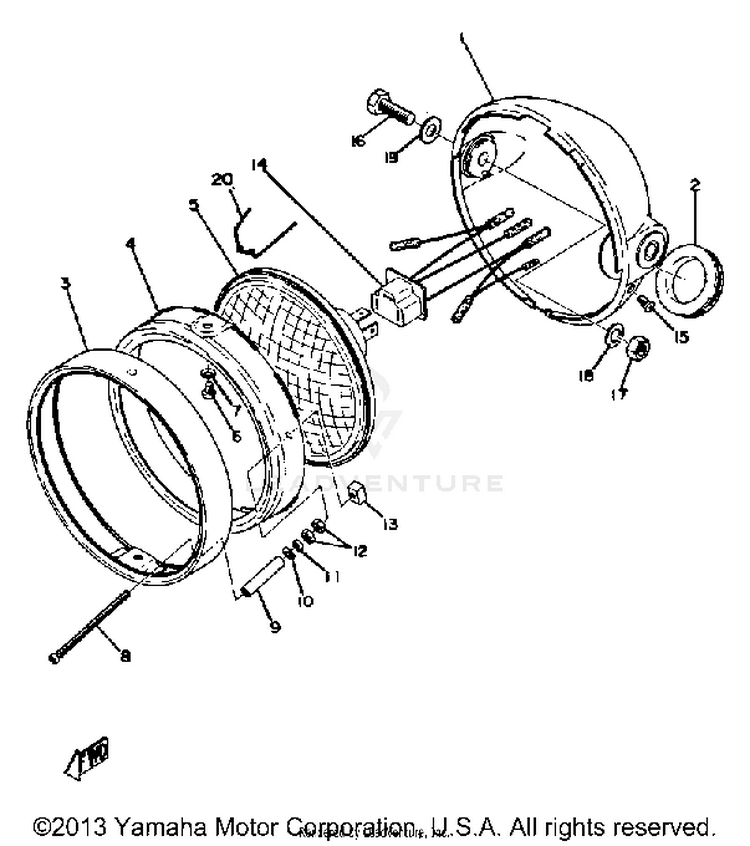

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1498-84130-60-20

(replaces part #
438-84130-61-20)

BODY ASSEMBLY, HEADLIGHT | CRYSTAL SILVER$42.99$35.25Not Shipping
2214-84153-60-00GROMMET, WIRE HARNESS$8.49$6.623 In-Stock
3498-84115-60-00RIM, HEADLIGHT$78.99$61.61Not Shipping
4498-84195-60-00RING, RETAINING$45.99$37.71Usually ships in 7-10 business days
52A6-84120-60-00

(replaces part #
438-84120-61-00)

LENS ASSEMBLY$84.99$66.29Not Shipping
6438-84194-60-00RING, MOUNTING$4.50$4.05Not Shipping
792990-05100-00

(replaces part #
438-84192-60-00)

WASHER, SPRING-$0.8310+ In-Stock
890157-04001-00SCREW, ADJUSTING$9.49$7.404 In-Stock
9341-84133-60-00SPACER$0.00$0.00Not Shipping
1092990-04200-00

(replaces part #
92901-04200-00)

WASHER, PLAIN$2.00$1.7210+ In-Stock
11168-84328-60-00SPACER$4.58$4.12Not Shipping
1295307-04600-00

(replaces part #
95301-04600-00)

NUT$9.49$8.545 In-Stock
13198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
14261-84312-61-00SOCKET, CORD$18.70$15.33Not Shipping
1590152-05005-00SCREW, COUNTERSUNK$4.65$4.002 In-Stock
1697013-08025-00

(replaces part #
97313-08025-00)

BOLT, KICK CRANK$9.49$7.406 In-Stock
1795333-08600-00

(replaces part #
95303-08600-00)

NUT$3.80$3.4710+ In-Stock
1892990-08100-00

(replaces part #
92903-08100-00)

WASHER, SPRING$5.60$4.3710+ In-Stock
1992903-84324-00WASHER, PLAIN$0.00$0.00Not Shipping
20148-84324-00-00SPRING, REFLECTOR$7.49$6.741 In-Stock
