1974 Yamaha DT250 Shifter 1 OEM Parts Diagram

Submodel DT250A - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFTER 1

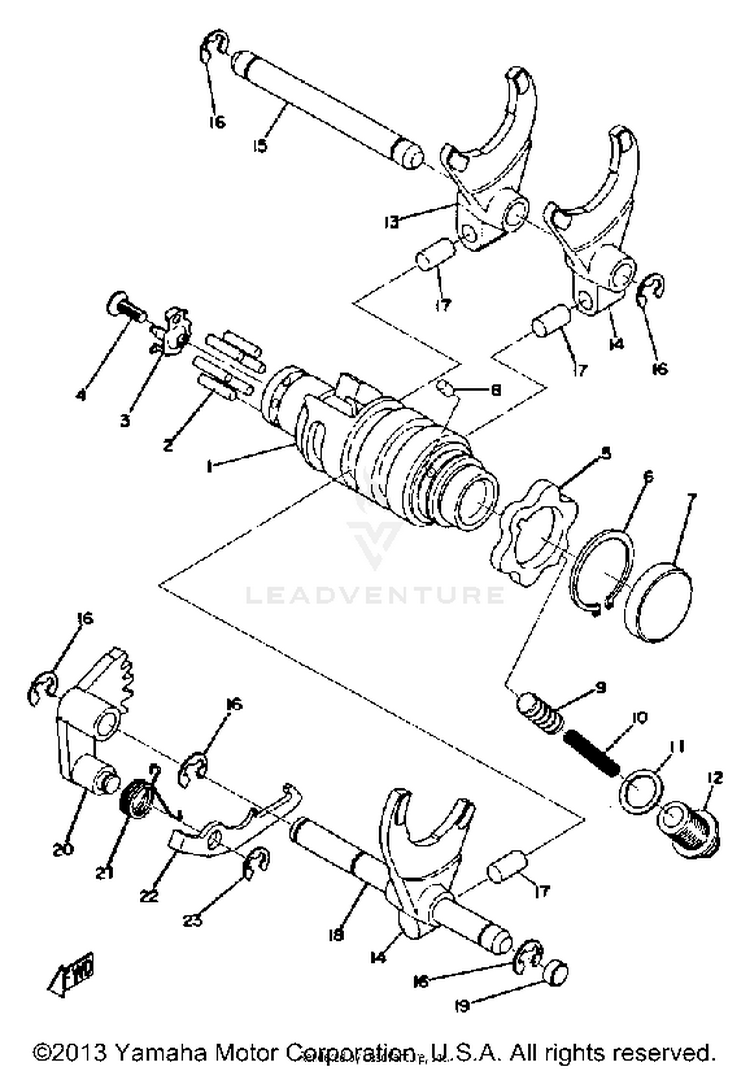

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1434-18540-00-00SHIFT CAM ASSEMBLY (434-18541-0$0.00$0.00Not Shipping
293604-18100-00PIN, DOWEL$3.85$3.4610+ In-Stock
3434-18561-00-00PLATE, SIDE 1$5.99$5.39Usually ships in 7-10 business days
498707-05012-00

(replaces part #
98701-05012-00)

SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
5360-18141-01-00PLATE, STOPPER$13.49$11.06Not Shipping
699009-30400-00

(replaces part #
93410-30012-00)

CIRCLIP$9.49$7.4010+ In-Stock
790338-32031-00PLUG, SPEC''L SHAPE$2.10$1.89Not Shipping
893604-08071-00PIN, DOWEL$9.49$7.4010+ In-Stock
9278-18547-02-00STOPPER, CAM$22.99$18.85Not Shipping
1090501-10062-00SPRING, COMPRESSION$10.49$8.181 In-Stock
114F4-14766-00-00

(replaces part #
137-15353-00-00)

GASKET, DRAIN$7.49$5.849 In-Stock
1290149-14485-00SCREW$0.00$0.00Not Shipping
13363-18511-00-00FORK, SHIFT 1$63.99$49.91Usually ships in 7-10 business days
14364-18511-00-00FORK, SHIFT 1$123.99$96.71Usually ships in 7-10 business days
15363-18535-00-00BAR, SHIFT FORK GUIDE 2$11.49$9.42Usually ships in 7-10 business days
1699001-08600-00

(replaces part #
93430-08006-00)

CIRCLIP$9.49$7.405 In-Stock
1790250-08017-00PIN, STRAIGHT$6.99$6.29Usually ships in 7-10 business days
18363-18531-00-00BAR, SHIFT FROK GUIDE 1$8.42$7.58Usually ships in 7-10 business days
1990334-10006-00PLUG, STRAIGHT$6.99$5.45Not Shipping
20434-18122-00-00LEVER, CHANGE 2$40.99$33.61Usually ships in 7-10 business days
2190508-08008-00SPRING, TORSION (363-18123-00)$3.30$2.97Not Shipping
22498-18151-03-00LEVER, SHIFT 3$17.99$14.75Usually ships in 7-10 business days
2399080-07600-00

(replaces part #
93430-07012-00)

CIRCLIP$3.65$3.147 In-Stock
