1975 Yamaha DT100 Crankcase Cover OEM Parts Diagram

Submodel DT100B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

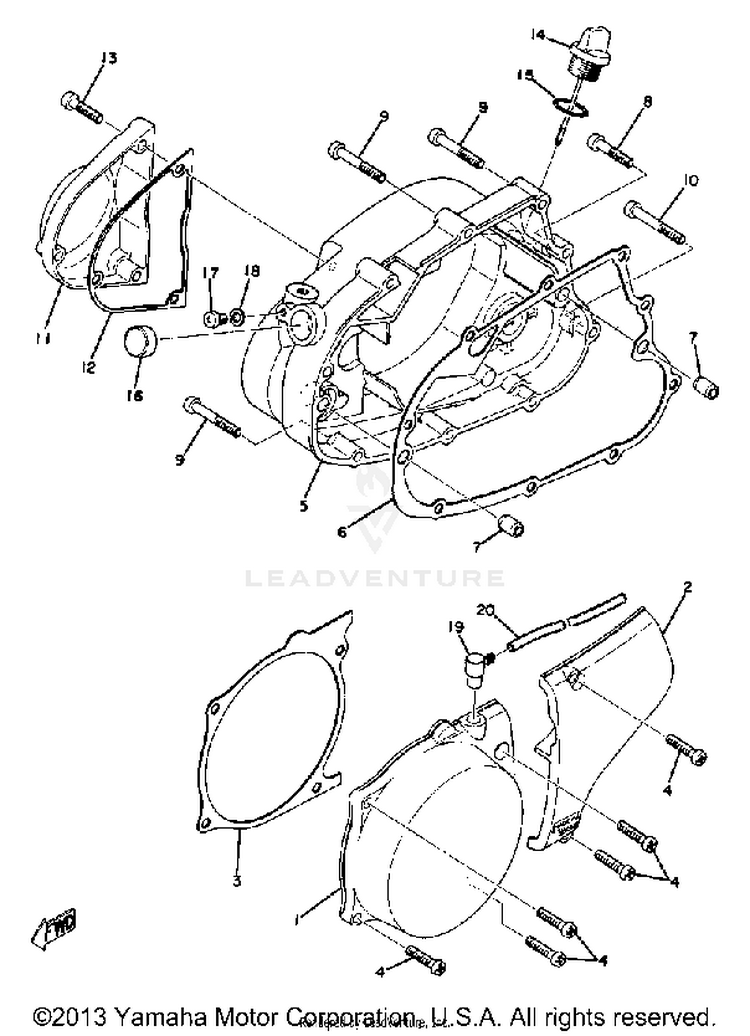

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1437-15411-01-00COVER, CRANKCASE L$116.99$91.25Not Shipping
2437-15421-00-00COVER, CRANKCASE R$22.99$18.85Not Shipping
3401-15455-01-00

(replaces part #
401-15455-00-00)

GASKET 1$15.99$13.11Not Shipping
498517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
5437-15431-00-00COVER, CRANKCASE 3$70.71$55.15Usually ships in 7-10 business days
63UL-15451-00-00

(replaces part #
401-15451-00-00)

GASKET, CRANKCASE COVER 1$22.99$17.935 In-Stock
799530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
897885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
998580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
1098580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
11437-15416-01-00COVER, OIL PUMP$37.99$31.15Usually ships in 7-10 business days
123UL-15456-01-00

(replaces part #
3UL-15456-00-00)

GASKET, OIL PUMP COVER 1$12.99$10.131 In-Stock
1398517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
14401-15362-00-00PLUG, OIL LEVEL$20.99$17.21Not Shipping
1593210-19123-00O-RING$8.99$7.0110+ In-Stock
1690338-20023-00PLUG$6.49$5.062 In-Stock
1798580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
19583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
2090446-07009-00HOSE$1.05$0.94Not Shipping
