1975 Yamaha DT100 Kick Starter OEM Parts Diagram

Submodel DT100B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

KICK STARTER

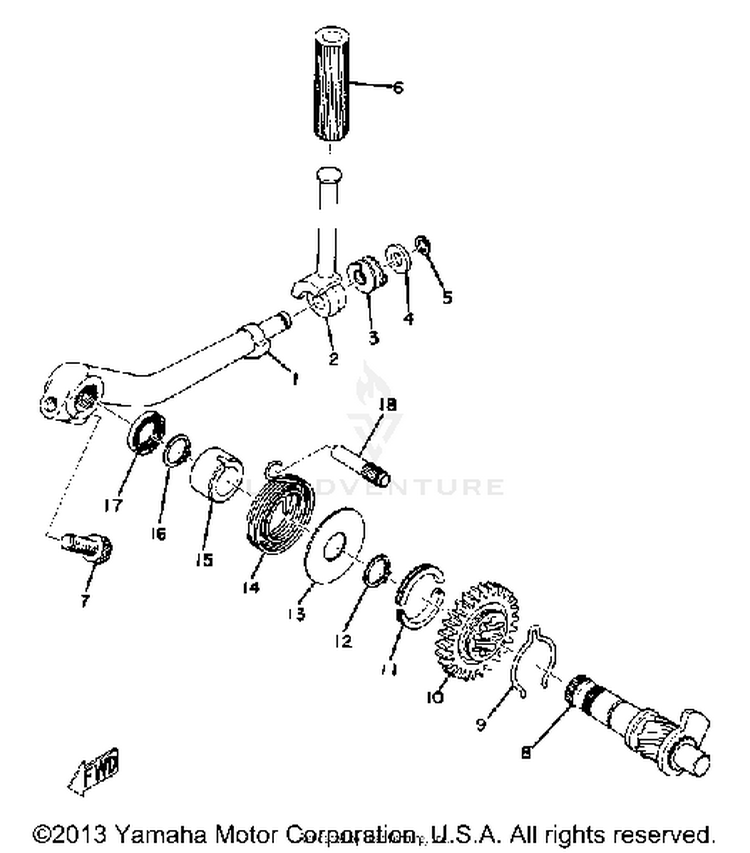

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11X0-15620-00-00KICK CRANK ASSEMBLY (437-15610-$150.99$117.77Usually ships in 7-10 business days
2137-15612-01-00LEVER, KICK$8.28$7.45Usually ships in 7-10 business days
390504-18031-00SPRING, COMPRESSION$10.49$8.188 In-Stock
490209-10210-00

(replaces part #
90209-10108-00)

WASHER,SPEC'L SHAPE$2.35$2.12Not Shipping
593440-10028-00CIRCLIP, OUTER$2.55$2.30Not Shipping
6156-15618-01-00COVER, KICK LEVER$8.49$6.6210+ In-Stock
791317-08025-00

(replaces part #
91316-08025-00)

BOLT$9.49$7.407 In-Stock
8403-15660-02-00

(replaces part #
403-15660-01-00)

KICK AXLE ASSEMBLY$92.99$72.53Usually ships in 7-10 business days
990468-26048-00CLIP$9.49$7.4010+ In-Stock
10305-15641-00-00GEAR, KICK$21.23$17.41Usually ships in 7-10 business days
11248-15654-00-00HOLDER, KICK GEAR$7.49$6.74Usually ships in 7-10 business days
1299009-30400-00CIRCLIP$9.49$7.4010+ In-Stock
13401-15676-00-00COVER, SPRING$8.49$6.624 In-Stock
1490508-26041-00SPRING, TORSION$8.49$7.64Usually ships in 7-10 business days
15401-15666-00-00SPACER$11.99$9.83Usually ships in 7-10 business days
1699009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
1793101-17062-00OIL SEAL | M4-043$16.49$12.8610+ In-Stock
18257-15668-00-00STOPPER$11.99$9.83Usually ships in 7-10 business days
