1975 Yamaha MX400 Cylinder Head-Cylinder OEM Parts Diagram

Submodel MX400B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

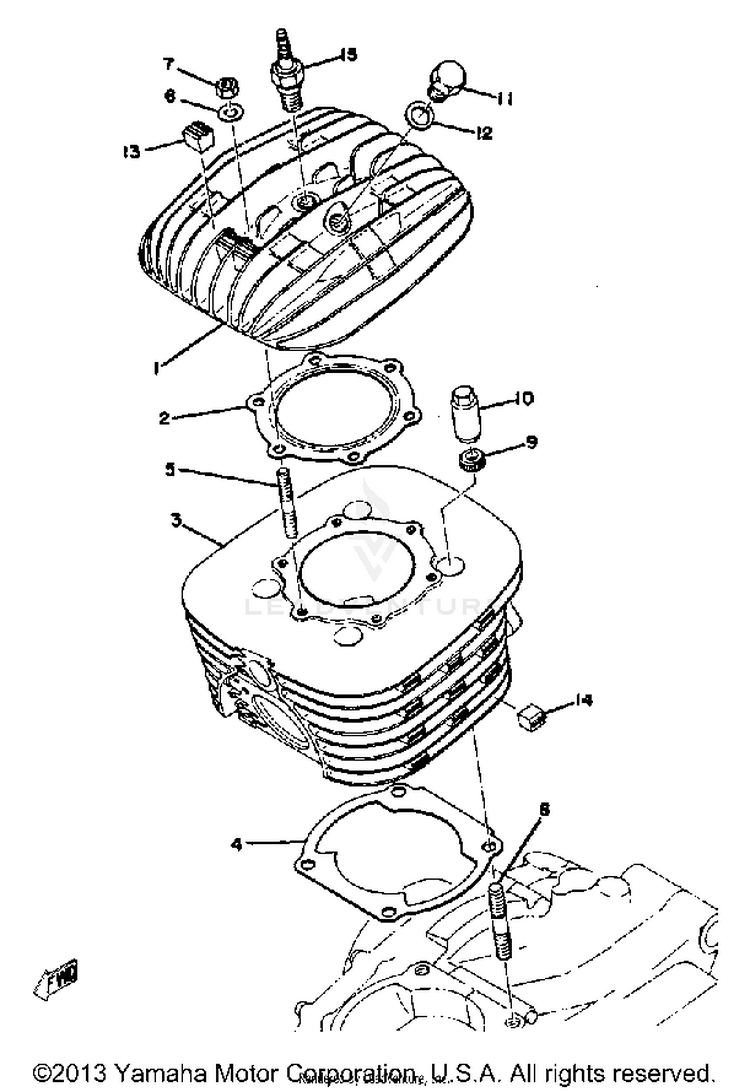

CYLINDER HEAD-CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1510-11111-01-00HEAD, CYLINDER 1$125.99$98.27Usually ships in 7-10 business days
2500-11181-00-00GASKET, CYLINDER HEAD 1$82.99$64.732 In-Stock
3510-11311-01-00CYLINDER 1$369.99$296.10Not Shipping
4500-11351-09-00

(replaces part #
500-11351-00-00)

GSKT,CYLNDR$20.99$17.21Not Shipping
590116-08104-00BOLT, STUD$19.49$15.203 In-Stock
690201-08100-00WASHER, PLATE$9.49$7.4010+ In-Stock
795333-08600-00NUT$3.80$3.4710+ In-Stock
890116-10087-00BOLT, STUD$19.49$15.981 In-Stock
990201-11155-00WASHER, PLATE (363-11175-00)$4.90$4.41Not Shipping
1090179-10021-00

(replaces part #
90179-10201-00)

NUT$28.99$22.616 In-Stock
1190340-14022-00PLUG, STRAIGHT SCRW (214-11197-$4.40$3.96Not Shipping
12214-11198-01-00GASKET$3.17$2.8910+ In-Stock
13363-11161-00-00ABSORBER 1 (363-11161-00)$8.49$7.64Usually ships in 7-10 business days
14427-11161-00-00ABSORBER 1$2.77$2.49Not Shipping
15NGK-BR8EV-00-00

(replaces part #
NGK-B8EV0-00-00)

NGK BR8EV 4PK$7.95$6.20Not Shipping
