1975 Yamaha MX400 Seat OEM Parts Diagram

Submodel MX400B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

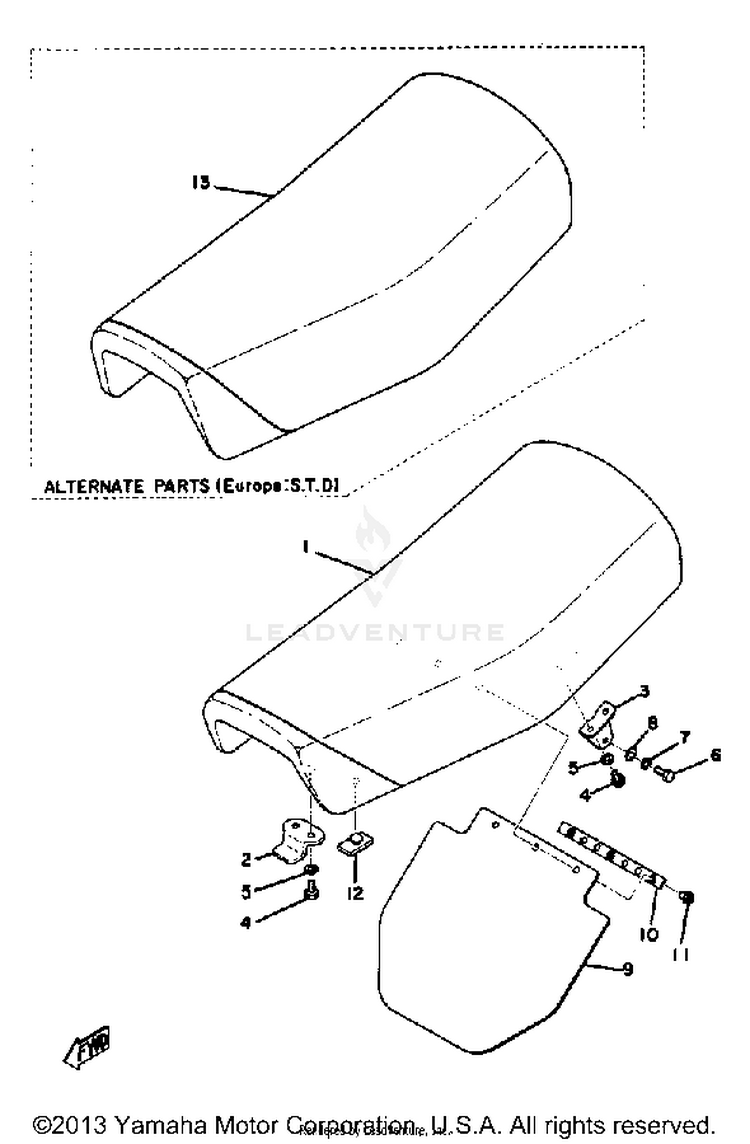

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-509-24771-00-00COVER, SM-DBL SEAT$44.88$36.80Usually ships in 7-10 business days
1509-24770-04-00SEMI-DBL SEAT ASSEMBLY$174.99$136.49Not Shipping
22Y0-24748-00-00BRACKET, SEAT$12.49$9.74Not Shipping
3509-24738-01-00BRACKET, SEAT$29.99$24.59Not Shipping
497013-06012-00BOLT$6.49$5.0610+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
697D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
892990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
9483-21621-00-00FLAP$13.98$11.46Not Shipping
10483-21615-00-00WASHER, SPECIAL 1$3.76$3.38Not Shipping
1198980-06012-00

(replaces part #
98903-06012-00)

SCREW, BIND$9.49$7.4010+ In-Stock
12509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
13509-24770-11-00SEMI-DBL SEAT ASSEMBLY | THICKER SEAT6EUROPE: STD$174.99$136.49Not Shipping
