1975 Yamaha TY80 Flywheel Magneto OEM Parts Diagram

Submodel TY80B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

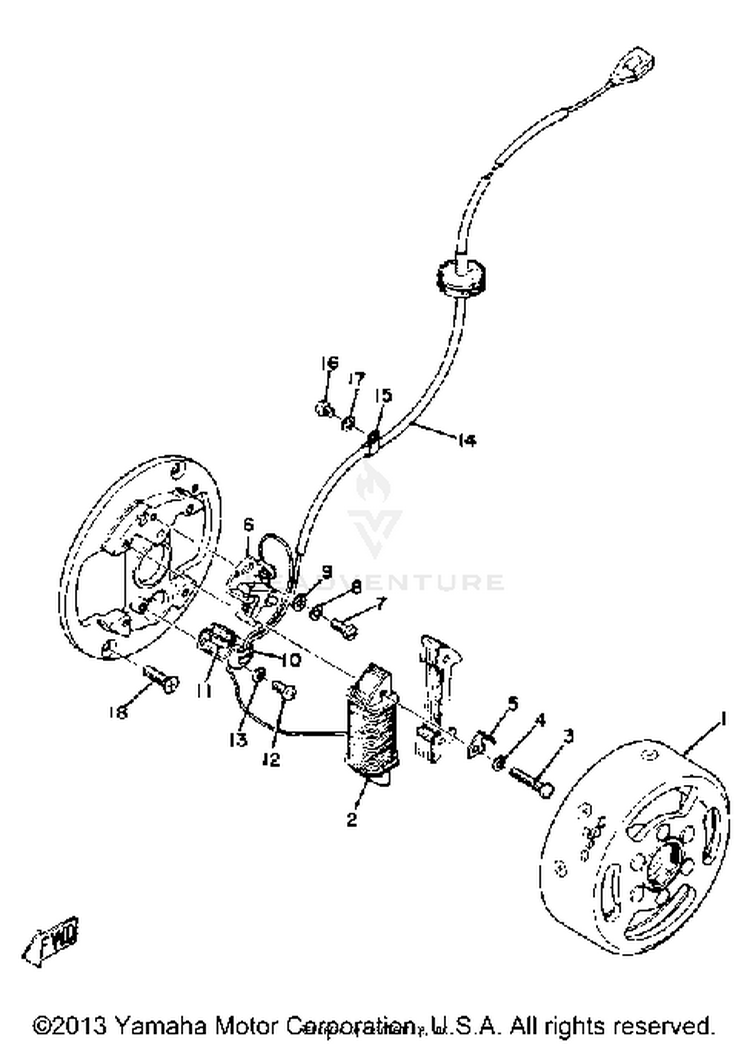

FLYWHEEL MAGNETO

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-451-81350-20-00ROTOR ASSEMBLY$82.87$64.64Usually ships in 7-10 business days
1451-81300-20-00FLYWHL MAGNETO ASSEMBLY$147.99$115.43Usually ships in 7-10 business days
2451-81312-20-00COIL, SOURCE$79.32$61.87Not Shipping
398517-04025-00

(replaces part #
97602-04125-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
492990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
5296-81332-20-00PLATE, TIMING$6.68$6.01Usually ships in 7-10 business days
62A6-81321-20-00CONTACT BRKR ASSEMBLYASSY$54.99$42.891 In-Stock
7110-81346-21-00SCREW, PAN HEAD$5.99$4.676 In-Stock
892990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
992990-04200-00WASHER, PLAIN$2.00$1.7210+ In-Stock
10296-81325-90-00CONDENSER$37.99$31.15Not Shipping
11116-81331-20-00LUBRICATOR$10.49$8.60Usually ships in 7-10 business days
12110-81346-21-00SCREW, PAN HEAD$5.99$4.676 In-Stock
1392990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
14367-81315-20-00LEAD WIRE ASSEMBLY$12.52$10.27Not Shipping
15367-81328-20-00CLAMP$0.50$0.45Usually ships in 7-10 business days
1698580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1792990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1898707-05016-00

(replaces part #
98701-05016-00)

SCREW, FLAT HEAD$7.99$6.233 In-Stock
