1975 Yamaha TY80 Frame-Side Cover OEM Parts Diagram

Submodel TY80B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

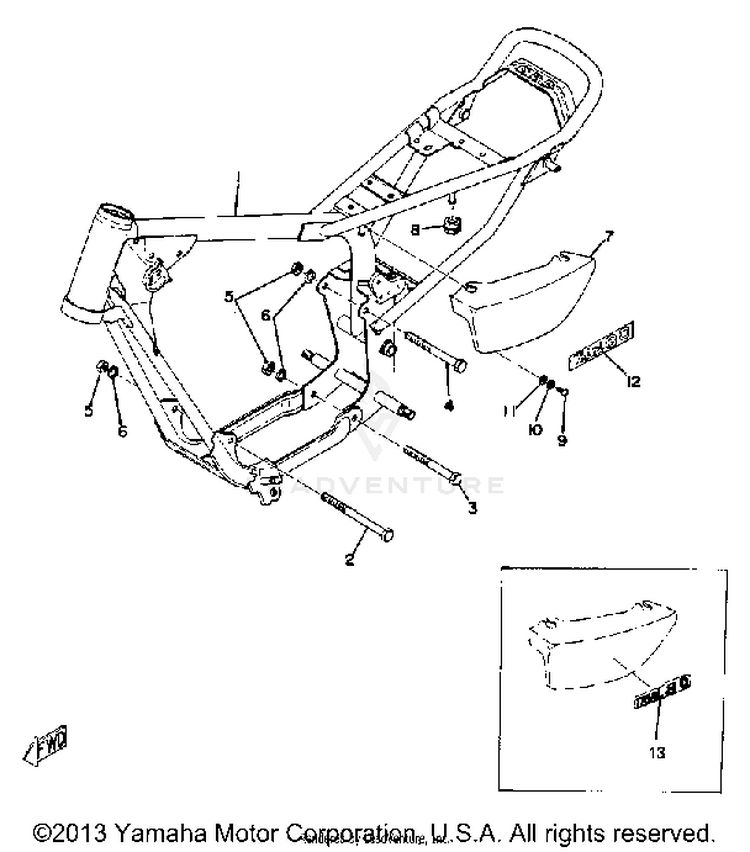

FRAME-SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1451-21110-01-35FRAME | SILVER$181.99$141.95Usually ships in 7-10 business days
295817-08120-00

(replaces part #
95811-08120-00)

BOLT, FLANGE$5.49$4.284 In-Stock
397023-08090-00BOLT (97321-08090)$3.40$3.06Not Shipping
495817-08095-00

(replaces part #
95811-08095-00)

BOLT, FLANGE$5.49$4.281 In-Stock
595333-08600-00NUT$3.80$3.4710+ In-Stock
692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
7451-21711-00-00COVER, SIDE 1$19.50$15.99Not Shipping
890480-12053-00GROMMET$8.49$6.6210+ In-Stock
997885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1192990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
12451-21787-00-00EMBLEM 7$5.86$5.27Not Shipping
13451-14729-31-00EMBLEM, PROTECTOR$7.49$6.74Not Shipping
