1976 Yamaha DT100 Flasher Light OEM Parts Diagram

Submodel DT100C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

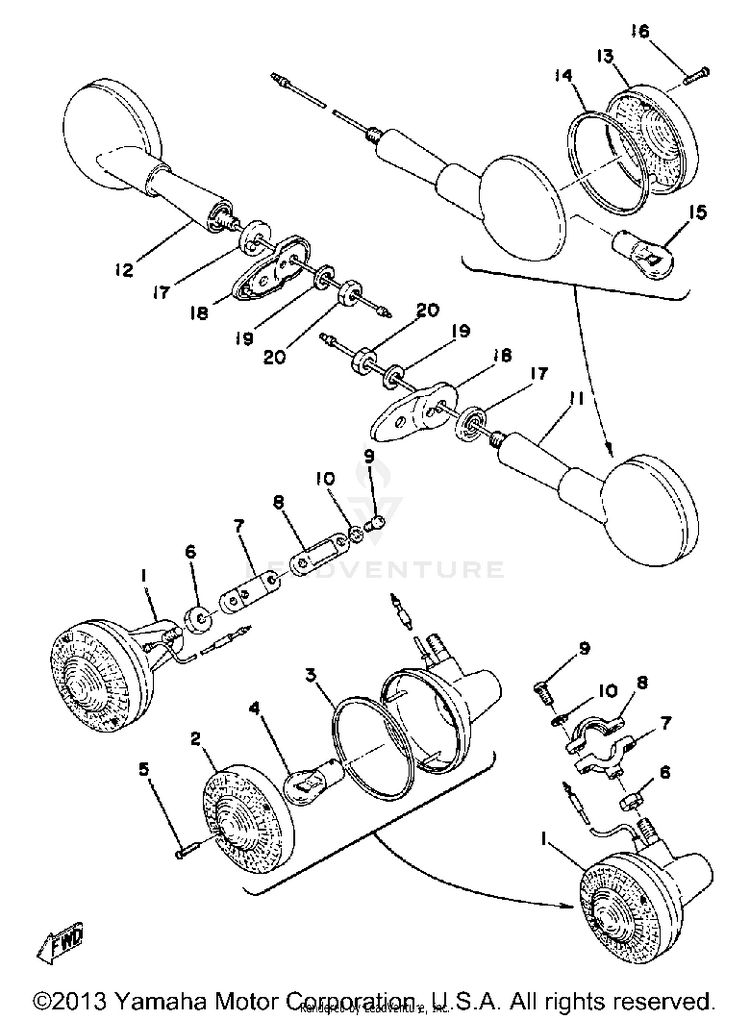

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1438-83310-62-93FRT FLSHR LITE ASSEMBLYLAMP ASS$57.99$45.23Not Shipping
2341-83312-70-00LENS, FLASHER | AMBER$19.99$15.594 In-Stock
33Y6-83313-00-00GASKET, FLASHER LENS$8.49$6.629 In-Stock
4115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
590151-03003-00

(replaces part #
341-83333-70-00)

SCREW, COUNTERSUNK$6.99$5.4510+ In-Stock
695333-08600-00NUT$3.80$3.4710+ In-Stock
7437-83328-01-00STAY, FLASHER 2$26.99$22.13Not Shipping
8275-83318-00-00STAY, FLASHER 1$7.06$6.35Not Shipping
998507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1092990-06300-00

(replaces part #
92901-06300-00)

WASHER, INTERNAL TOOTH$2.80$2.52Usually ships in 7-10 business days
11437-83330-61-93R FLSHR LITE ASSEMBLY$44.99$36.89Usually ships in 7-10 business days
12437-83340-61-93R FLSHR LITE ASSEMBLY$44.99$36.89Usually ships in 7-10 business days
13341-83332-70-00LENS, FLASHER | RED$3.10$2.79Not Shipping
143Y6-83313-00-00GASKET, FLASHER LENS$8.49$6.629 In-Stock
15115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
1690151-03003-00

(replaces part #
341-83333-70-00)

SCREW, COUNTERSUNK$6.99$5.4510+ In-Stock
17437-83326-00-00COLLAR, FLASHER 2$9.49$8.54Not Shipping
18437-83368-02-00STAY, FLASHER$4.95$4.46Usually ships in 7-10 business days
1992990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
2095333-08600-00NUT$3.80$3.4710+ In-Stock
