1976 Yamaha LB80 Carrier OEM Parts Diagram

Submodel LB802AC - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CARRIER

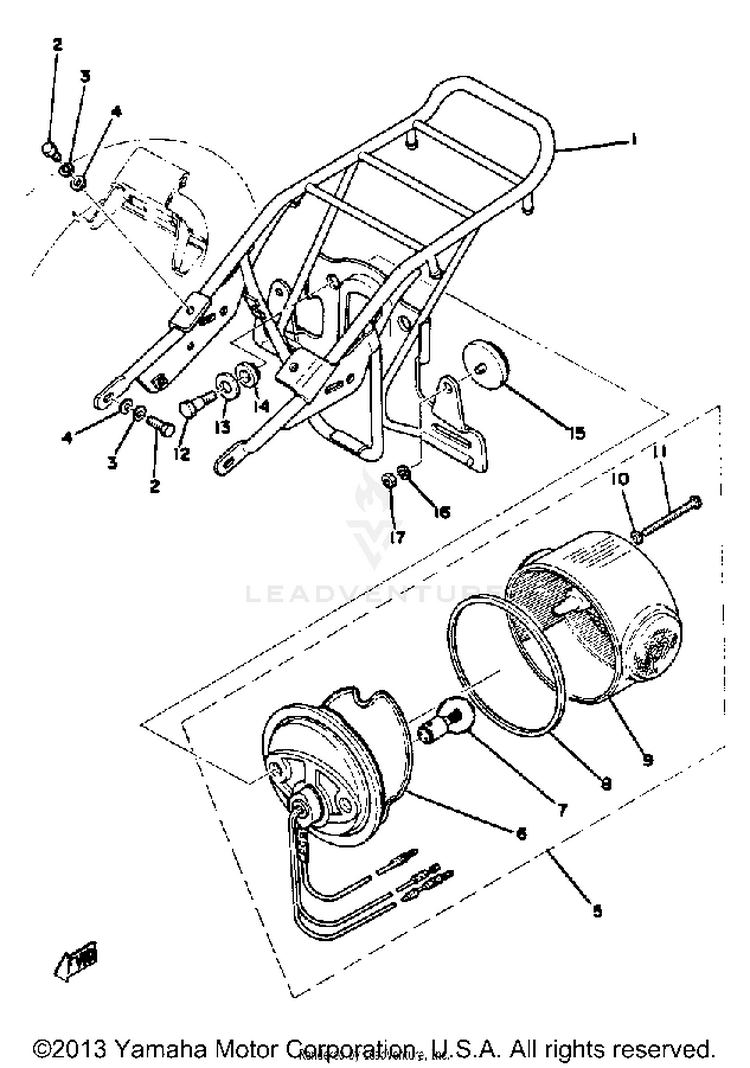

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1E6-84711-61-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
-97017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
1542-24810-01-00CARRIER ASSEMBLY$67.99$53.03Not Shipping
297D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
492990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
5437-84510-62-00TAILLIGHT UNIT ASSEMBLY$78.99$61.61Not Shipping
6444-84711-61-00BASE, TAILLIGHT$35.99$29.51Not Shipping
71M1-84514-60-XX

(replaces part #
1M1-84514-60-00)

BULB 6VP21/5W(17904)$4.80$4.13Not Shipping
8275-84523-60-00GASKET, LENS$9.20$7.18Not Shipping
9341-84721-60-00LENS, TAILLIGHT$21.16$17.35Not Shipping
10341-84722-60-00WASHER$3.96$3.56Not Shipping
1198580-04055-00SCREW, LENS FITTING$10.49$8.184 In-Stock
12479-84526-00-00SCREW$3.95$3.56Not Shipping
132H7-84754-00-00WASHER, SPECIAL$11.99$9.83Usually ships in 7-10 business days
14275-84527-60-00DAMPER$6.68$6.01Not Shipping
15449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1692990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1795380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
