1976 Yamaha LB80 Shifter Lb80iiad - Ae OEM Parts Diagram

Submodel LB802AC - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFTER LB80IIAD - AE

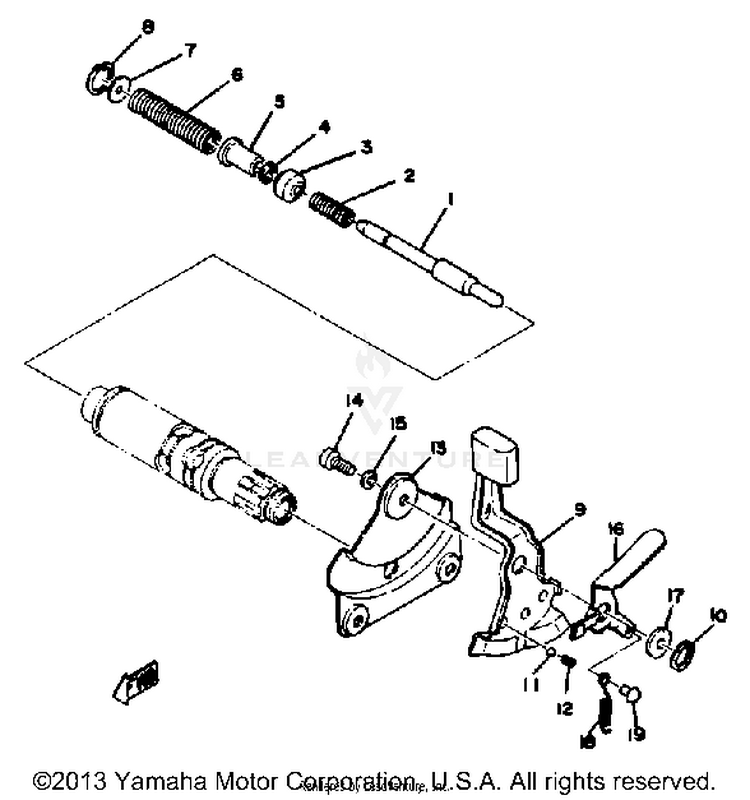

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1384-18411-03-00ROD, SHIFTER$27.99$22.95Usually ships in 7-10 business days
290501-08183-00SPRING, COMPRESSION$2.95$2.66Usually ships in 7-10 business days
3234-18412-00-00HEAD, SHIFTER$35.99$29.51Usually ships in 7-10 business days
499080-04600-00CLIP$1.99$1.716 In-Stock
5384-18473-01-00RETAINER, SPRING$15.99$13.11Usually ships in 7-10 business days
690501-12198-00SPRING, COMPRESSION$3.30$2.97Usually ships in 7-10 business days
790209-01134-00WASHER, SPEC''L SHAP$1.50$1.35Usually ships in 7-10 business days
899009-15500-00CIRCLIP$11.49$9.42Usually ships in 7-10 business days
9439-18451-02-00

(replaces part #
439-18451-01-00)

LEVER, SHIFT$76.99$60.05Usually ships in 7-10 business days
1090206-10036-00WASHER, WAVE$8.49$7.64Usually ships in 7-10 business days
1193507-32031-00BALL$5.49$4.2810+ In-Stock
1290501-09197-00SPRING, COMPRESSION$3.65$3.28Usually ships in 7-10 business days
13384-18428-00-00SEAL, DUST$4.60$4.14Usually ships in 7-10 business days
1497885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
1592990-05100-00WASHER, SPRING-$0.8310+ In-Stock
16439-18148-01-00LEVER, STOPPER$17.49$14.34Usually ships in 7-10 business days
1790201-06M08-00

(replaces part #
90201-06050-00)

WASHER, PLATE$2.55$2.197 In-Stock
1890506-07066-00SPRING, TENSION$10.49$8.181 In-Stock
19132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
