1976 Yamaha LB80 Steering OEM Parts Diagram

Submodel LB802AC - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

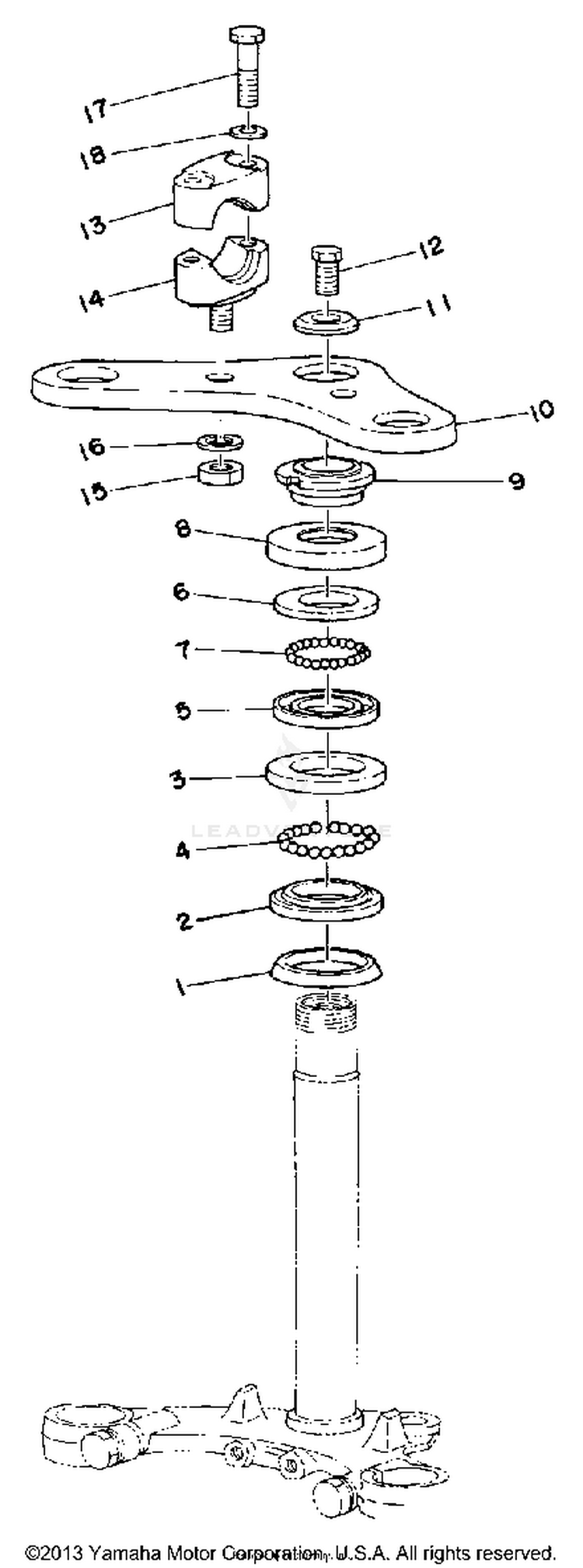

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1164-23462-00-00SEAL, STEERING$8.49$6.628 In-Stock
2B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
3B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
493501-04011-00BALL$9.49$7.4010+ In-Stock
5BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
6BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
793503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
8122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
990179-25051-00NUT$36.99$28.853 In-Stock
10439-23435-01-93CROWN, HANDLE$13.99$11.47Not Shipping
1190209-10160-00

(replaces part #
90209-10021-00)

WASHER, SPEC''L SHAP$8.49$6.6210+ In-Stock
1290105-10006-00BOLT, FLANGE$12.49$9.7410+ In-Stock
13462-23441-01-00

(replaces part #
462-23441-00-00)

HOLDER,HANDLE UPR$16.99$13.93Usually ships in 7-10 business days
14462-23442-00-98HOLDER, HANDLE LWR$15.99$13.11Usually ships in 7-10 business days
1595314-10600-00

(replaces part #
95303-10600-00)

NUT$2.55$2.19
1692990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1797014-06035-00

(replaces part #
97013-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
1892990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
