1976 Yamaha LB80 Swing Arm OEM Parts Diagram

Submodel LB802AC - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SWING ARM

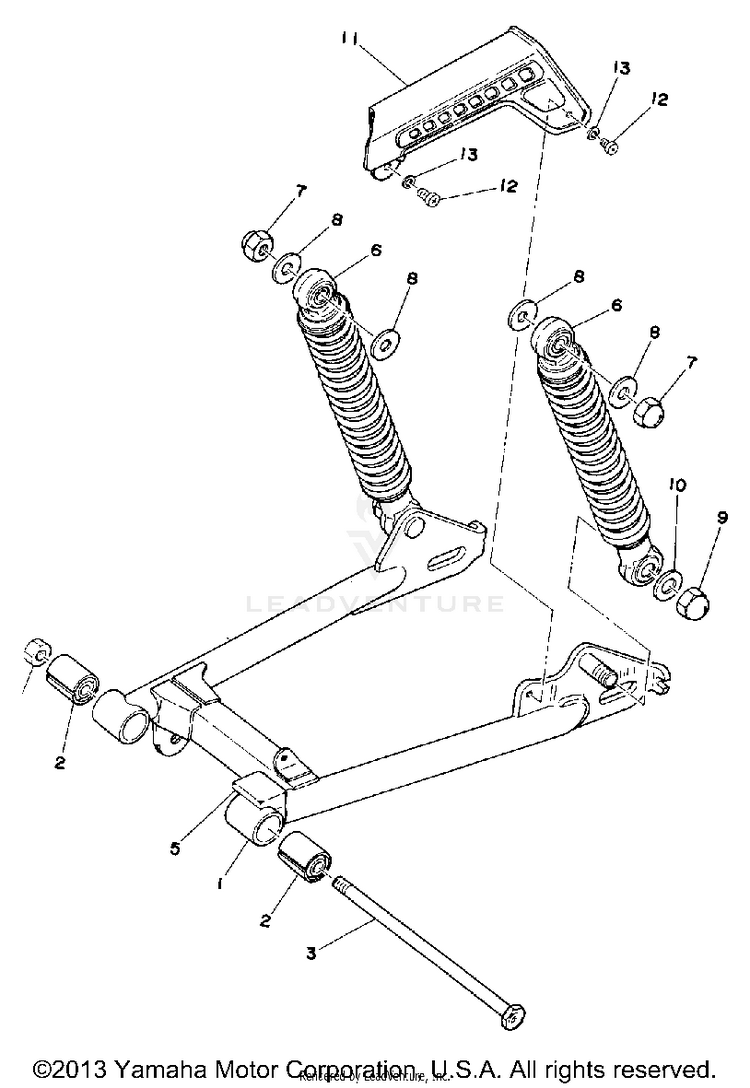

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1561-22110-01-33REAR ARM | YAMAHA BK$69.99$54.59Usually ships in 7-10 business days
2102-22123-00-00BUSH 1$10.99$8.5710+ In-Stock
33XG-F5181-00-00

(replaces part #
353-22141-02-00)

AXLE, WHEEL$6.49$5.84Usually ships in 7-10 business days
495314-10600-00

(replaces part #
95303-10600-00)

NUT$2.55$2.19
5395-22151-00-00SEAL, GUARD$2.17$1.95Usually ships in 7-10 business days
6561-22210-22-00SHK/ABS ASSEMBLY, REAR$107.99$84.23Usually ships in 7-10 business days
795380-12800-00

(replaces part #
95303-12800-00)

NUT(CROWN)$15.49$13.49Usually ships in 7-10 business days
890201-126A7-00

(replaces part #
90201-12190-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
995380-12800-00

(replaces part #
95303-12800-00)

NUT(CROWN)$15.49$13.49Usually ships in 7-10 business days
1090201-126A7-00

(replaces part #
90201-12190-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
11439-22311-00-35CASE, CHAIN | SLVR$6.26$5.63Not Shipping
1297885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
1392990-05100-00WASHER, SPRING-$0.8310+ In-Stock
