1976 Yamaha TT500 Seat OEM Parts Diagram

Submodel TT500C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

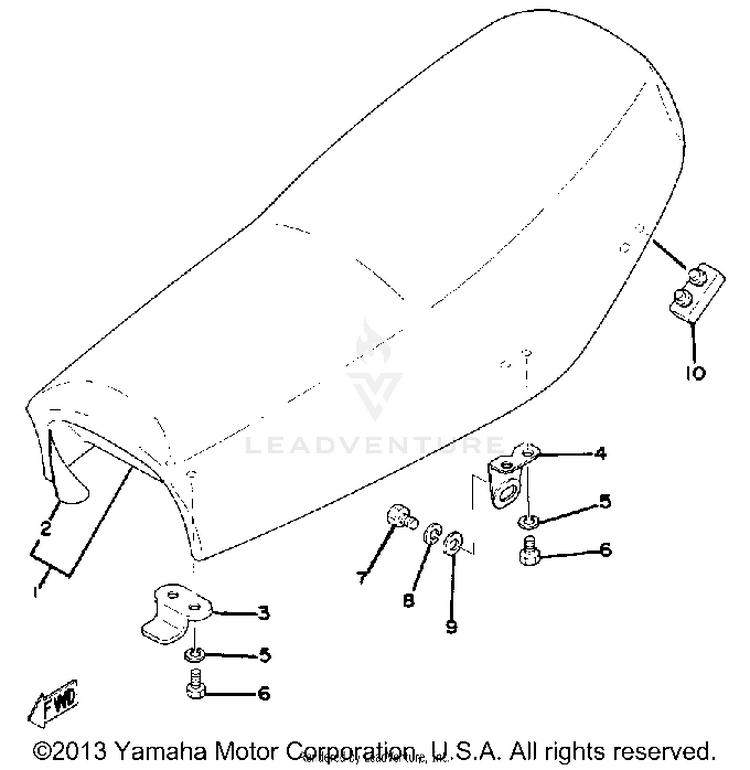

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1583-24770-00-00SEMI-DBL SEAT ASSEMBLY$102.99$80.33Not Shipping
2583-24771-00-00COVER, SM-DBL SEAT$83.99$65.51Not Shipping
32Y0-24748-00-00BRACKET, SEAT$12.49$9.74Not Shipping
4583-24738-00-00BRACKET, SEAT$5.86$5.27Usually ships in 7-10 business days
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
697D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
797013-08016-00

(replaces part #
97313-08016-00)

BOLT-$1.7810+ In-Stock
892990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
992990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
10583-24724-00-00DAMPER, SEAT$17.99$14.75Not Shipping
