1976 Yamaha TT500 Steering OEM Parts Diagram

Submodel TT500C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

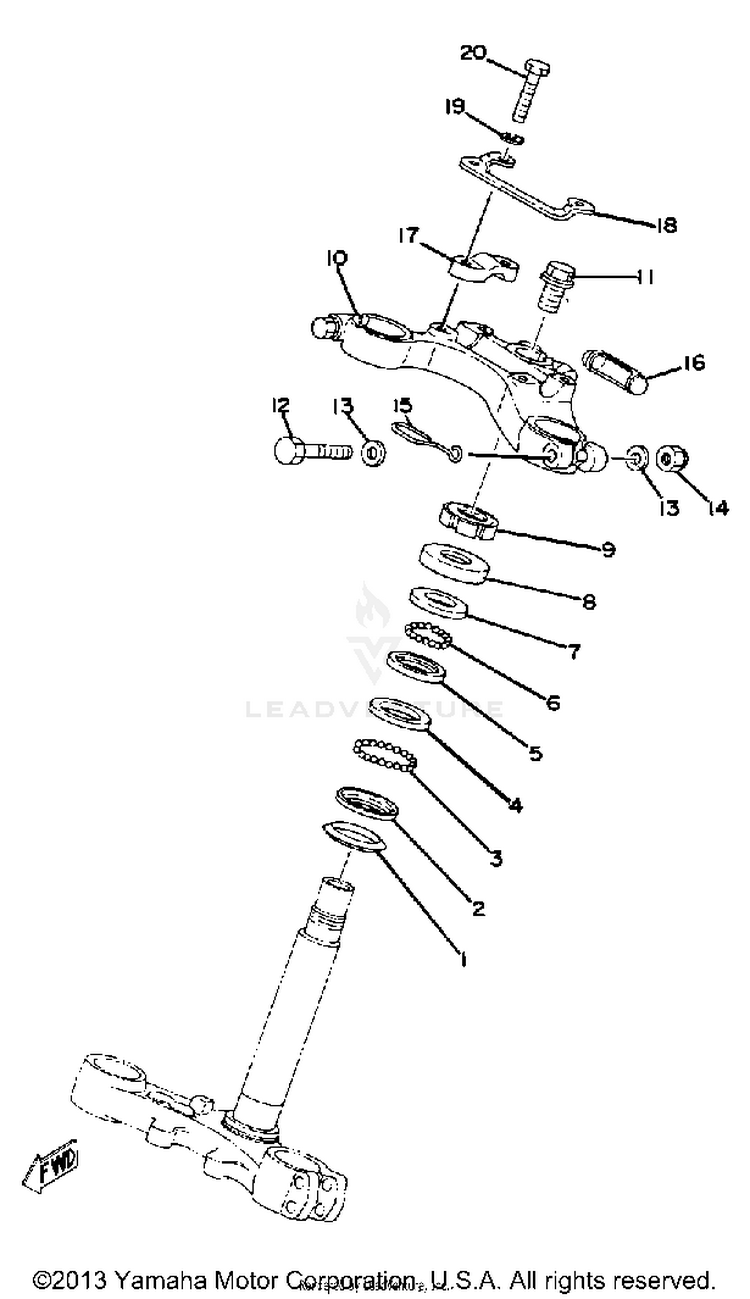

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1164-23462-00-00SEAL, STEERING$8.49$6.628 In-Stock
2B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
393501-04011-00BALL$9.49$7.4010+ In-Stock
4B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
5BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
693503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
7BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
8583-23416-00-00COVER, BALL RACE 2$2.58$2.32Not Shipping
990179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
10583-23435-01-98CROWN, HANDLE | FROSTING BLK$74.99$58.49Not Shipping
1190105-14220-00

(replaces part #
90105-14136-00)

BOLT, FLANGE$5.49$4.285 In-Stock
1297013-08055-00

(replaces part #
97313-08055-00)

BOLT (661)$3.85$3.3110+ In-Stock
1390201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1495617-08100-00

(replaces part #
95611-08100-00)

NUT, U$10.49$8.1810+ In-Stock
15583-23317-00-00HOLDER, CABLE$2.97$2.67Not Shipping
16583-23469-00-00CAP, BOLT$33.99$27.87Usually ships in 7-10 business days
17401-23441-00-98HOLDER, HANDLE UPPER | FROSTING BLK$17.49$14.34Not Shipping
18583-23389-00-00GUIDE, CABLE$2.58$2.32Not Shipping
1992990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
2097013-08035-00

(replaces part #
97313-08035-00)

BOLT$6.49$5.0610+ In-Stock
