1976 Yamaha TY250 Electrical OEM Parts Diagram

Submodel TY250C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL

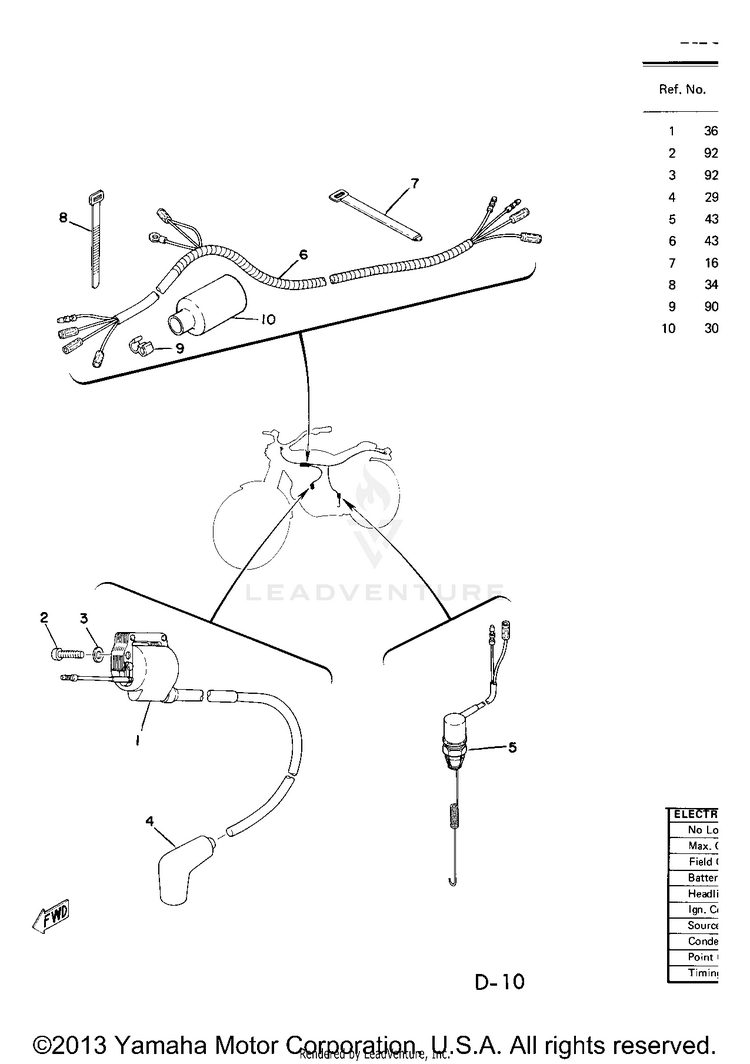

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1355-82310-40-00

(replaces part #
367-82310-30-00)

IGNITION COIL ASSEMBLY$211.99$165.35Usually ships in 7-10 business days
298517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
392990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
4294-82370-00-00PLUG CAP ASSEMBLY$77.99$60.83Not Shipping
5434-82530-00-00STOP SWITCH ASSEMBLY$14.20$11.64Not Shipping
6434-82590-22-00WIRE HARNESS ASSEMBLY$17.60$14.43Not Shipping
7437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
8341-26397-01-00BAND$12.49$10.24Usually ships in 7-10 business days
990468-15020-00CLIP$8.49$7.64Usually ships in 7-10 business days
10306-82599-00-00COVER, CONNECTER | ALTERNATE PART$3.16$2.84Not Shipping
