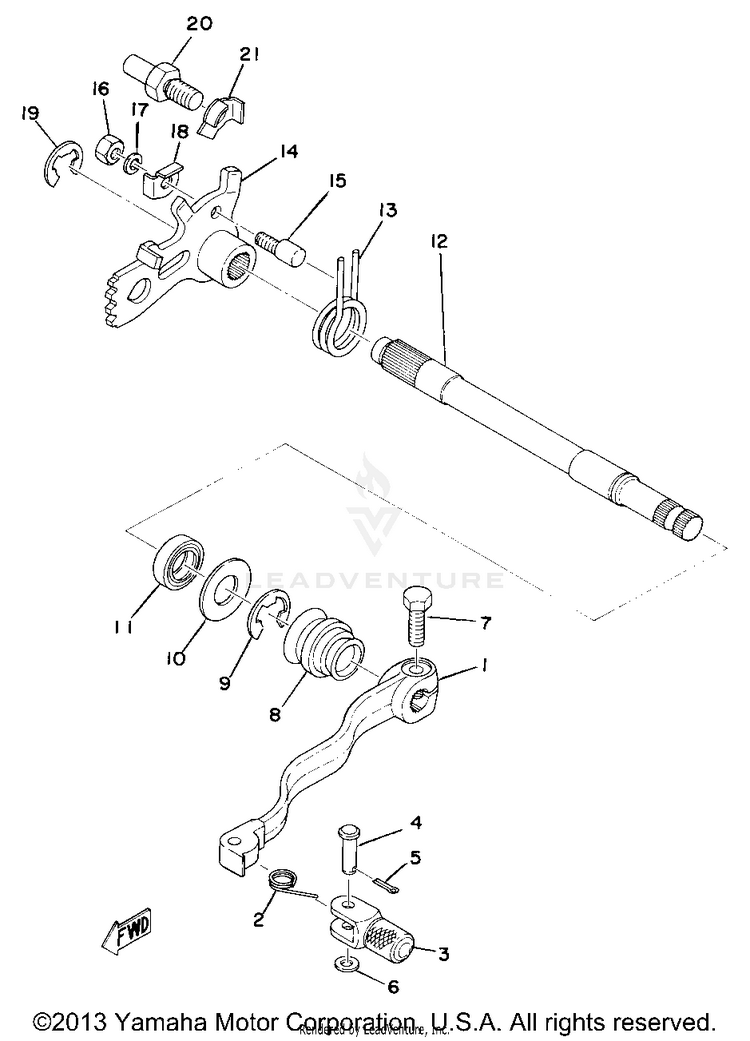

1976 Yamaha TY250 Shifter 2 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	493-18110-02-00	SHIFT PEDAL ASSEMBLY	$35.99	$29.51	Usually ships in 7-10 business days
2	90508-14262-00	SPRING, TORSION	$1.59	$1.43	Usually ships in 7-10 business days
3	493-18112-02-00	ARM, SHIFT	$16.32	$13.38	Usually ships in 7-10 business days
4	90240-06043-00	PIN, CLEVIS	$8.49	$7.64	Usually ships in 7-10 business days
5	91490-20025-00 (replaces part # 91490-20020-00)	PIN, COTTER	$1.99	$1.71	10+ In-Stock
6	90201-06431-00	WASHER, PLATE	$6.49	$5.06	10+ In-Stock
7	97017-06020-00 (replaces part # 97011-06020-00)	BOLT	$4.06	$3.49	10+ In-Stock
8	214-18131-00-00	BOOT, SEALING	$6.99	$6.29	Not Shipping
9	99001-12600-00	CIRCLIP	$6.49	$5.06	4 In-Stock
10	90201-14220-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
11	93109-14010-00	OIL SEAL, SDO-TYPE	$14.49	$11.30	10+ In-Stock
12	363-18125-00-00	SHAFT, SHIFT	$23.94	$19.63	Not Shipping
13	90508-32052-00	SPRING, TORSION (214-18124-00)	$8.49	$7.64	Usually ships in 7-10 business days
14	434-18121-00-00	LEVER, SHIFT 1	$22.16	$18.17	Not Shipping
15	90149-06017-00	SCREW, SPEC''L SHAPE (214-18186	$8.49	$7.64	Usually ships in 7-10 business days
16	95380-06600-00	NUT, HEXAGON	$4.90	$4.60	5 In-Stock
17	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
18	90215-06016-00	WASHER, LOCK	$3.85	$3.46	Usually ships in 7-10 business days
19	99006-10600-00	CIRCLIP	$10.49	$8.18	10+ In-Stock
20	278-18127-01-00 (replaces part # 278-18127-00-00)	STOPPER, SCREW	$18.99	$15.57	1 In-Stock
21	90215-08015-00	WASHER	$4.35	$3.92	Not Shipping
