1977 Yamaha TT500 Electrical OEM Parts Diagram

Submodel TT500D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL

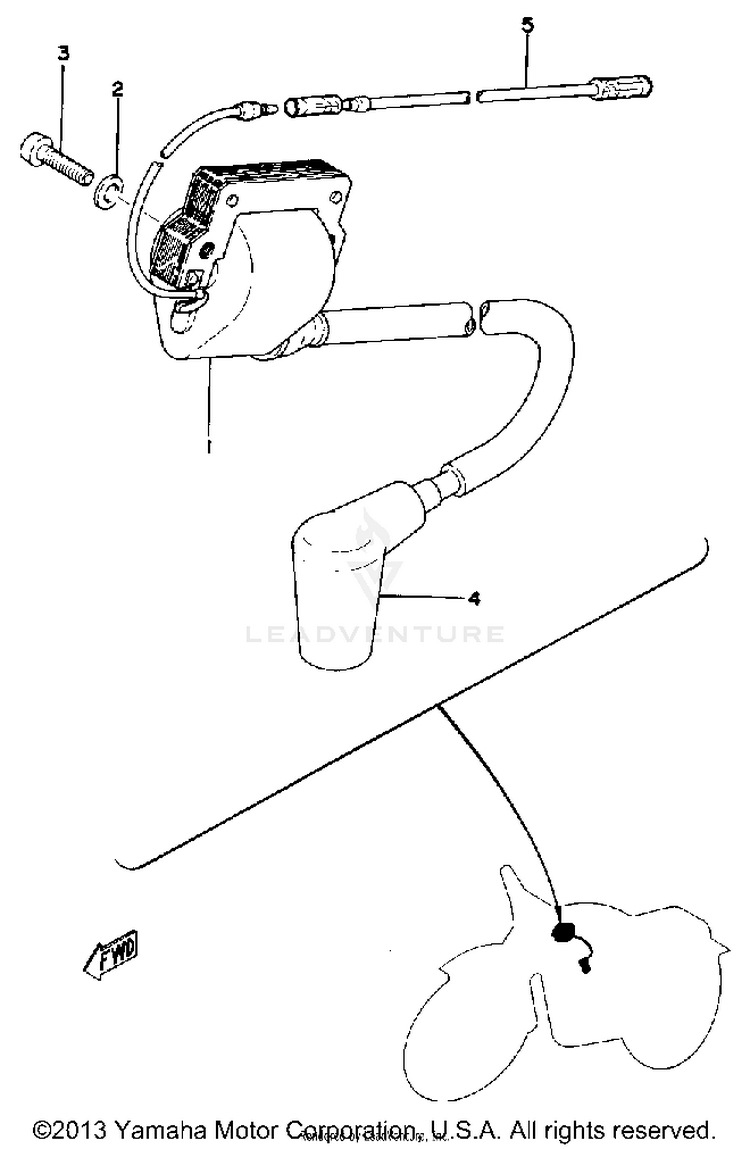

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1583-82310-50-00IGNITION COIL ASSEMBLY$185.99$145.07Not Shipping
292990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
398580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
456J-82370-00-00PLUG CAP ASSY$70.99$55.372 In-Stock
5583-82521-00-00WIRE, LEAD$3.36$3.02Usually ships in 7-10 business days
