1977 Yamaha TT500 Governor OEM Parts Diagram

Submodel TT500D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GOVERNOR

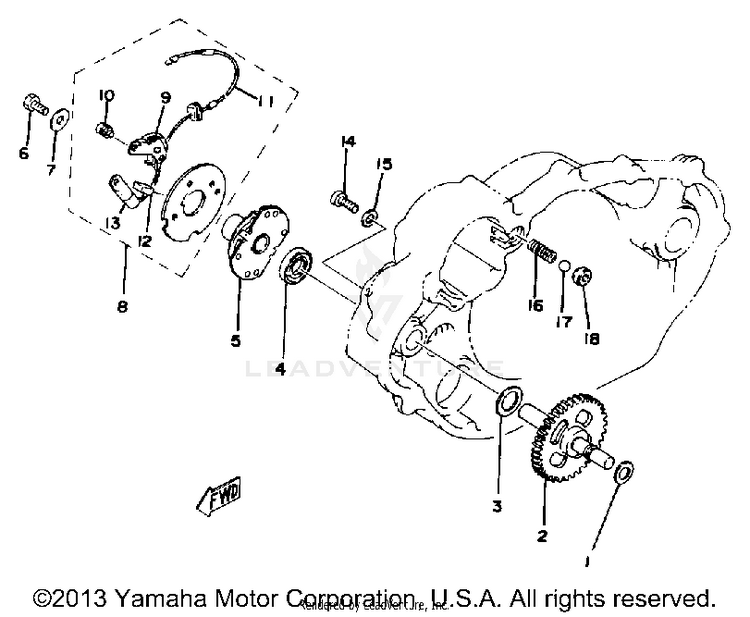

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190201-09572-00WASHER, PLATE$1.70$1.53Not Shipping
2583-11150-00-00BREAKER SHAFT ASSEMBLY$62.99$49.13Not Shipping
390201-15234-00WASHER, PLATE$9.49$7.406 In-Stock
493102-15147-00OIL SEAL$11.49$8.962 In-Stock
5583-81653-50-00GOVERNOR ASSEMBLY$293.99$229.31Usually ships in 7-10 business days
697D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
790201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
8583-81620-50-00BREAKER PLATE ASSEMBLY$221.99$173.15Usually ships in 7-10 business days
9583-81621-50-00CONTACT BRKR ASSEMBLY$90.99$70.97Usually ships in 7-10 business days
1098580-04006-00SCREW, PAN HEAD$3.30$2.845 In-Stock
11583-81615-50-00WIRE, LEAD$49.99$40.99Not Shipping
121L9-81631-50-00LUBRICATOR$6.49$5.84Not Shipping
13583-81625-50-00CONDENSER 1$48.99$40.17Usually ships in 7-10 business days
1498507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1690501-05378-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
1793503-08007-00BALL$4.50$3.879 In-Stock
18583-13113-00-00SEAT, CHECK BALL$25.99$20.2710+ In-Stock
