1978 Yamaha DT125 Crankcase Cover OEM Parts Diagram

Submodel DT125E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER

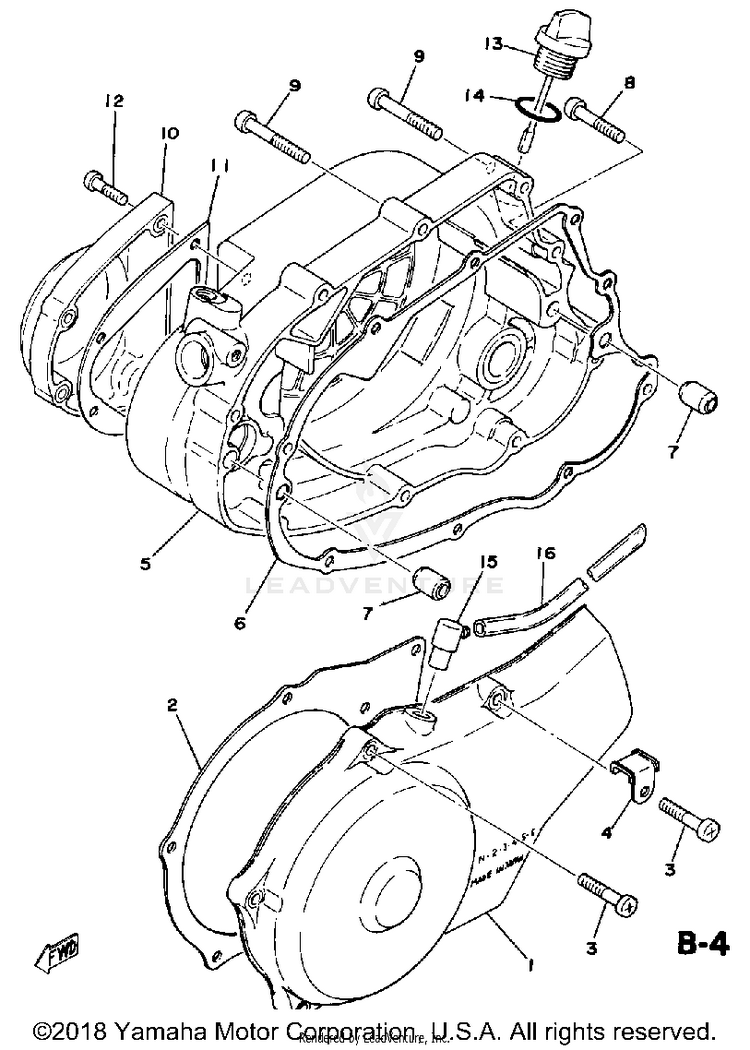

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12A7-15411-01-00COVER, CRANKCASE L$68.99$53.81Usually ships in 7-10 business days
22A6-15455-01-00GASKET 1$24.99$19.492 In-Stock
398517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
42A6-15484-01-00CLAMP 2$7.49$5.842 In-Stock
52A6-15431-00-00COVER, CRANKCASE 3$166.99$130.25Usually ships in 7-10 business days
618G-15451-03-00

(replaces part #
18G-15451-01-00)

GSKT, CRCS$31.99$24.956 In-Stock
799530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
897885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
998580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
102A6-15416-00-00COVER, OIL PUMP$37.99$31.15Not Shipping
112A6-15456-01-00

(replaces part #
2A6-15456-00-00)

GASKET, O/PMP CUR1$25.99$20.273 In-Stock
1298517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
13401-15362-00-00PLUG, OIL LEVEL$20.99$17.21Not Shipping
1493210-19123-00O-RING$8.99$7.0110+ In-Stock
15583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
1690445-072G8-00

(replaces part #
90445-07371-00)

HOSE (L310)$32.99$25.734 In-Stock
