1978 Yamaha DT125 Rear Cushion OEM Parts Diagram

Submodel DT125E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

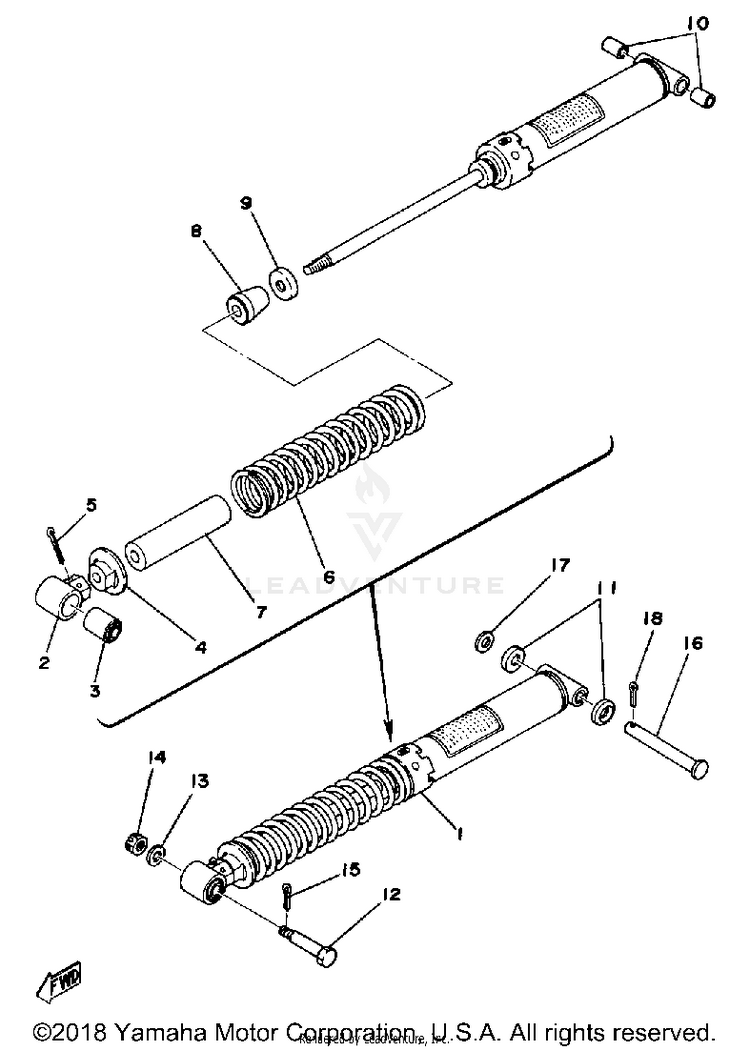

REAR CUSHION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12N4-22210-01-00SHK/ABS ASSEMBLY, REAR$365.99$285.47Not Shipping
21M1-22219-01-00BRACKET, UPPER$15.49$12.70Usually ships in 7-10 business days
31M1-22216-00-00BUSH, REAR SHOCK ABSORBER$33.99$27.87Usually ships in 7-10 business days
41M1-22213-01-00SEAT, SPRING UPPER$6.86$6.17Usually ships in 7-10 business days
591490-30045-00

(replaces part #
91401-30040-00)

PIN, COTTER$3.99$3.59Usually ships in 7-10 business days
690501-90484-00SPRING, COMPRESSION$25.73$21.10Usually ships in 7-10 business days
71M1-22496-02-00SLEEVE, ROD$4.11$3.70Usually ships in 7-10 business days
82A6-22493-00-00BUMP, STOP$9.28$8.35Not Shipping
91M1-22482-00-00STOPPER$4.15$3.74Not Shipping
1090380-12051-00BUSH, SOLID$17.49$13.645 In-Stock
11483-22128-00-00COVER, THRUST 1$12.49$10.24Not Shipping
1290109-10453-00

(replaces part #
90109-10550-00)

BOLT$19.49$15.982 In-Stock
1392990-10200-00WASHER, PLAIN$3.80$3.2710+ In-Stock
1495307-10900-00

(replaces part #
95303-10900-00)

NUT, CASTLE$11.49$8.963 In-Stock
1591490-20025-00PIN, COTTER$1.99$1.7110+ In-Stock
1690240-12059-00PIN, CLEVIS$9.99$8.99Not Shipping
1792990-12600-00WASHER, PLATE$9.49$7.403 In-Stock
1891490-30030-00

(replaces part #
91401-30030-00)

PIN, COTTER$8.49$6.6210+ In-Stock
