1978 Yamaha IT175 Frame - Side Cover OEM Parts Diagram

Submodel IT175E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME - SIDE COVER

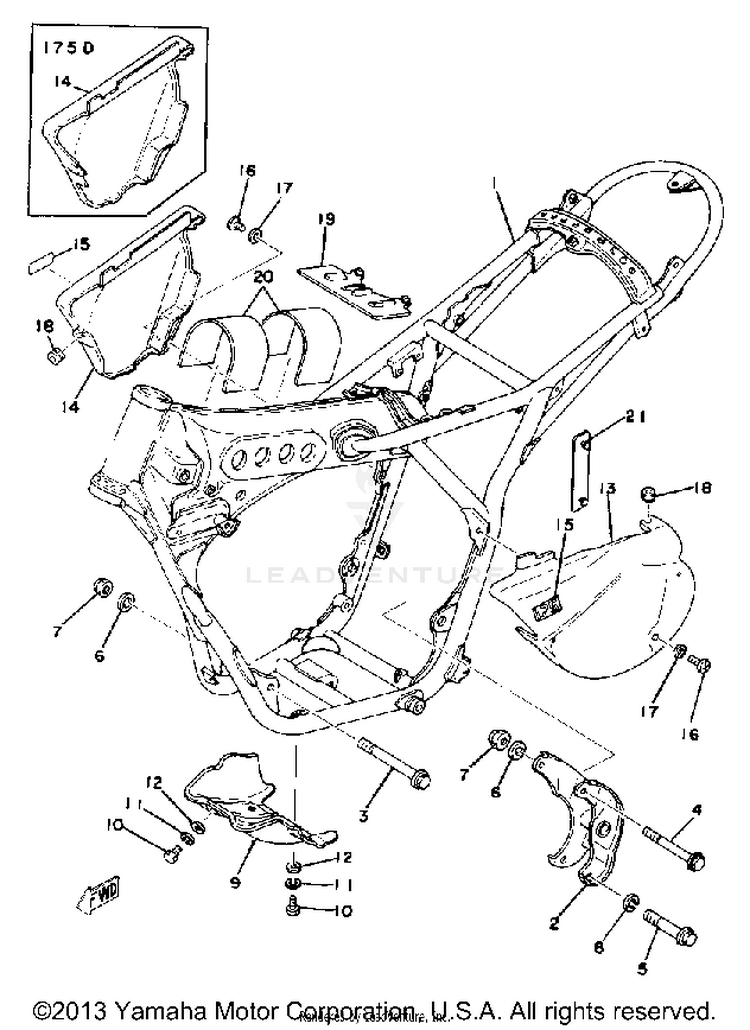

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1W2-21110-03-33FRAME$333.99$260.51Usually ships in 7-10 business days
11W2-21110-01-33FRAME$304.99$253.53Usually ships in 7-10 business days
21W1-21410-00-00ENGINE BRKT$48.99$40.17Not Shipping
390105-08099-00BOLT, FLANGE | M8-115L$6.49$5.0610+ In-Stock
495817-08055-00

(replaces part #
95811-08055-00)

BOLT, FLANGE | M8-95L$4.21$3.6210+ In-Stock
590105-10037-00BOLT, WASHER BASED | M10-80L$9.49$7.404 In-Stock
692990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
790185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
892990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
91W2-21471-00-00PROTECTOR, ENGINE$52.67$41.08Not Shipping
1090101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
1192990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1292990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
131W2-21711-00-00COVER, SIDE 1 | SKY BLUE/ COMP. YELLOW$52.99$41.33Not Shipping
141W2-21721-01-00COVER, SIDE 2 | SKY BLUE/ COMP. YELLOW$35.99$29.51Not Shipping
15525-14729-20-00EMBLEM, PROTECTOR$4.35$3.92Not Shipping
1698980-06012-00

(replaces part #
98903-06012-00)

SCREW, BIND$9.49$7.4010+ In-Stock
1790201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1890480-12053-00GROMMET$8.49$6.6210+ In-Stock
191W1-21481-00-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
201W1-24183-00-00DAMPER, LOCATING 3$7.52$6.77Not Shipping
21537-21732-00-00SEAL 1$6.44$5.80Not Shipping
