1979 Yamaha GT80/MX Crankcase Cover OEM Parts Diagram

Submodel GT80F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

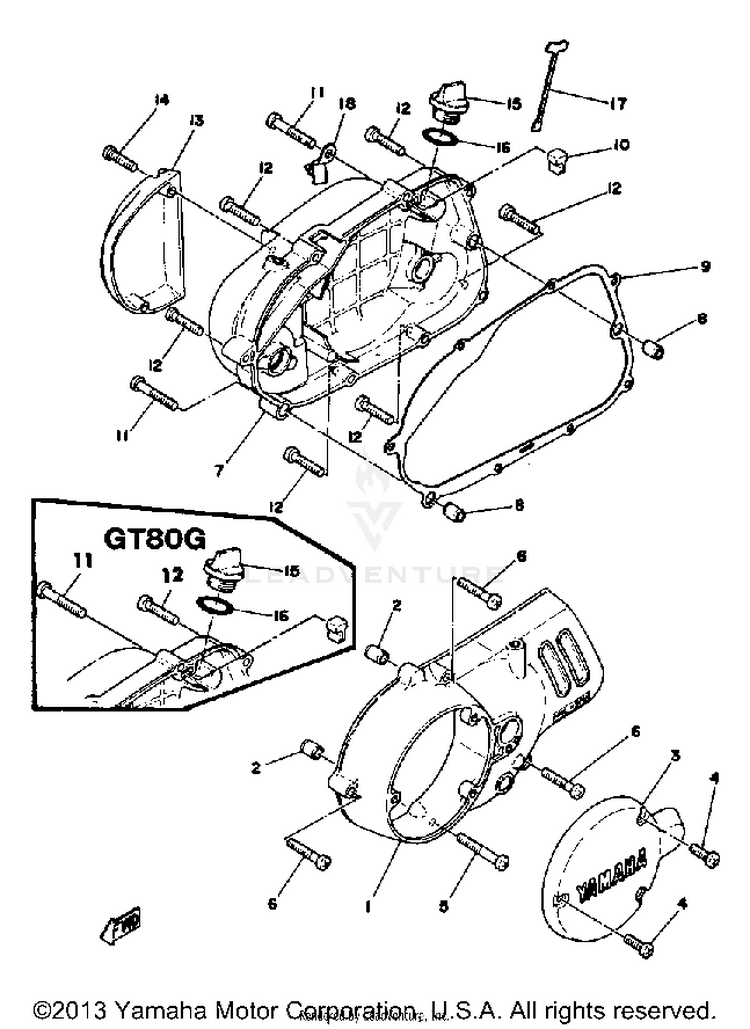

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1353-15411-00-Y4COVER, CRANKCASE L (353-15411-0 | METALLIC SILVER$84.99$66.29Usually ships in 7-10 business days
299530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
3353-15415-00-Y4COVER, GENERATOR | METALLIC SILVER$57.99$45.23Usually ships in 7-10 business days
498580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
598580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
697885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
7353-15421-00-00COVER, CRANKCASE R | METALLIC SILVER$75.99$59.27Usually ships in 7-10 business days
899530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
93MT-15451-00-00GASKET, CRCS COVER$28.99$22.617 In-Stock
10353-15437-02-00SCRAPER, OIL$6.49$5.84Not Shipping
1198580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
1297885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
13353-15416-00-00COVER, OIL PUMP | METALLIC SILVER$37.99$31.15Usually ships in 7-10 business days
1498517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
153Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
1693210-21190-00O-RING$8.49$6.6210+ In-Stock
17353-15361-00-00GAUGE, LEVEL$6.99$6.29Not Shipping
18367-13174-00-00HOLDER, OIL PIPE$10.99$9.01Usually ships in 7-10 business days
