1979 Yamaha GT80/MX Seat OEM Parts Diagram

Submodel GT80F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

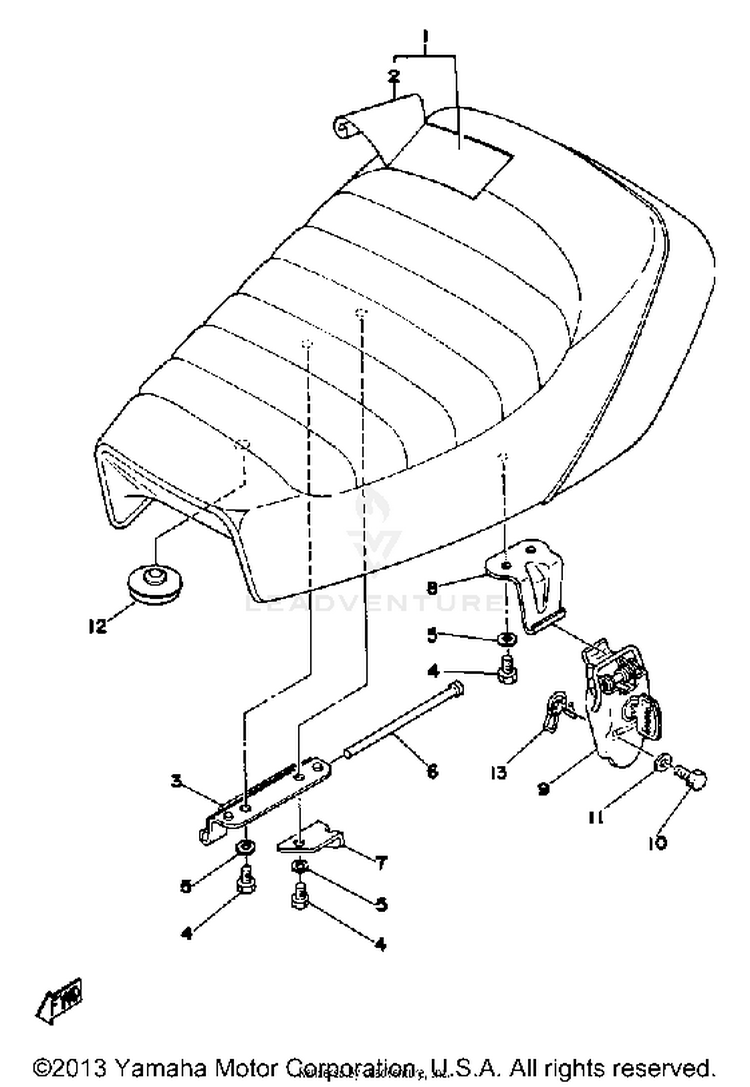

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12A3-W2473-00-00SEMI-DBL-SEAT ASSEMBLY$124.99$97.49Not Shipping
22A3-24771-00-00COVER, SM-DBL SEAT$67.99$53.03Not Shipping
3353-24726-00-00HINGE, SEAT$6.66$5.99Not Shipping
497013-06012-00BOLT$6.49$5.0610+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
61K8-24774-00-00PIN$7.99$7.19Usually ships in 7-10 business days
7374-24768-00-00STOPPER$3.85$3.46Usually ships in 7-10 business days
8278-24728-00-00BRACKET, SEAT$8.49$7.64Not Shipping
91K8-24705-00-00SEAT LOCK ASSEMBLY (2A3-24705-0$89.99$70.19Usually ships in 7-10 business days
1097017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1190201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
121L9-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
13341-24818-02-00HOOK, HELMET$14.49$11.88Usually ships in 7-10 business days
