1979 Yamaha MX175 Rear Arm OEM Parts Diagram

Submodel MX175F - 1979

Shop Aftermarket Parts

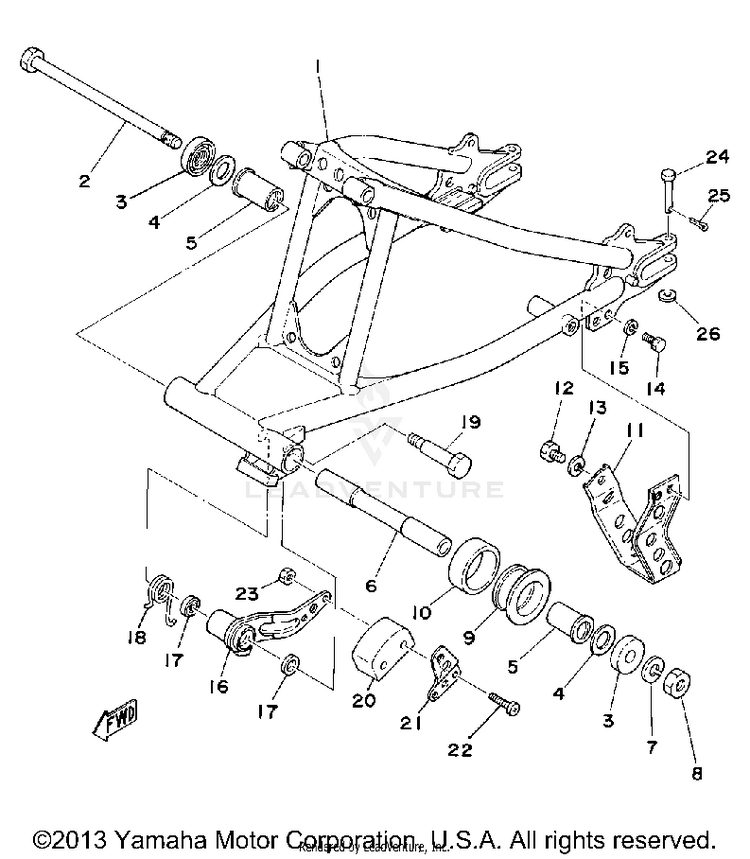

REAR ARM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13M2-22110-00-33REAR ARM | YAMAHA BLACK$134.99$105.29Usually ships in 7-10 business days
22N4-22141-00-00SHAFT, PIVOT$31.99$24.951 In-Stock
3401-22128-01-00COVER, THRUST 1$31.99$24.953 In-Stock
4401-22127-00-00SHIM$8.49$6.623 In-Stock
590386-18028-00BUSH$29.99$23.3910+ In-Stock
618G-22124-00-00BUSH 2$51.99$40.55Usually ships in 7-10 business days
792990-12100-00

(replaces part #
92901-12100-00)

WASHER, SPRING$9.49$7.405 In-Stock
890185-12134-00

(replaces part #
90185-12046-00)

NUT, SELF-LOCKING$13.49$10.523 In-Stock
92A6-22151-00-00SEAL, GUARD$10.99$8.573 In-Stock
102A6-22152-00-00SEAL, GUARD$5.99$4.672 In-Stock
112A6-22318-00-00GUARD, CHAIN$41.99$34.43Usually ships in 7-10 business days
1297013-08012-00

(replaces part #
97313-08012-00)

BOLT (661)$3.55$3.0510+ In-Stock
1392990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1497D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
162A6-22179-01-00

(replaces part #
2A6-22179-00-00)

ARM, TENSIONER$45.99$37.71Usually ships in 7-10 business days
1793109-14021-00

(replaces part #
93104-14044-00)

OIL SEAL$14.49$11.3010+ In-Stock
1890508-35350-00SPRING, TORSION$16.49$13.52Usually ships in 7-10 business days
1990109-10483-00BOLT (90109-10533-00)$10.49$8.182 In-Stock
20ACC-11130-00-25TENSIONER (2N0-22178-00-00)$9.45$7.37Not Shipping
211W1-22187-00-00GUIDE, CHAIN$9.99$8.99Usually ships in 7-10 business days
2298507-05035-00

(replaces part #
98501-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
2395317-05700-00

(replaces part #
95311-05700-00)

NUT$9.49$7.402 In-Stock
2491701-06042-00PIN, CLEVIS$8.49$7.64Usually ships in 7-10 business days
2591490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
2692990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
