1979 Yamaha MX175 Shifter 1 OEM Parts Diagram

Submodel MX175F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFTER 1

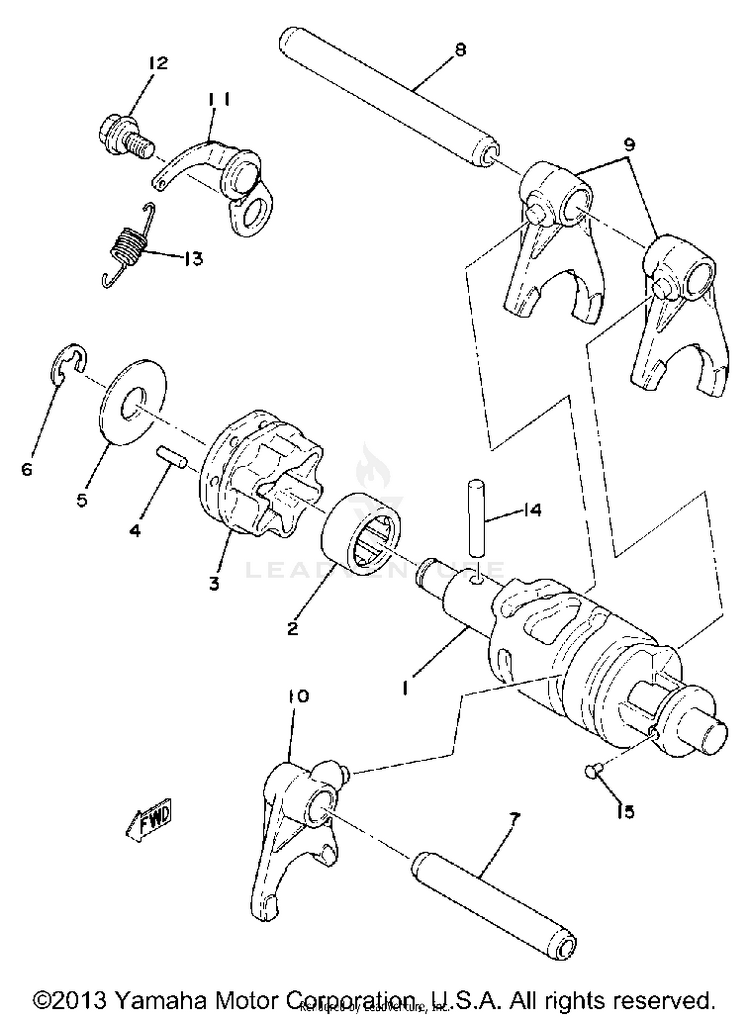

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11W1-18540-00-00SHIFT CAM ASSEMBLY$106.99$83.45Usually ships in 7-10 business days
293315-21813-00BEARING$39.99$31.1910+ In-Stock
31W1-18185-00-00SEGMENT$36.99$30.33Usually ships in 7-10 business days
493604-12037-00PIN, DOWEL$9.49$7.404 In-Stock
51W1-18561-00-00PLATE, SIDE 1$7.49$6.74Usually ships in 7-10 business days
699001-08600-00CIRCLIP$9.49$7.405 In-Stock
72A6-18531-00-00BAR, SHIFT FORK GUIDE 1$31.99$26.23Usually ships in 7-10 business days
82A6-18535-00-00BAR, SHIFT FORK GUIDE 2$36.99$30.33Usually ships in 7-10 business days
92A6-18511-00-00FORK, SHIFT 1$38.99$31.97Usually ships in 7-10 business days
102A6-18512-00-00FORK, SHIFT 2$39.99$32.79Usually ships in 7-10 business days
111W1-18140-00-00STOPPER LEVER ASSEMBLY$35.99$29.51Usually ships in 7-10 business days
1290109-06190-00

(replaces part #
50W-21631-00-00)

BOLT$5.99$4.6710+ In-Stock
1390506-09156-00SPRING, TENSION$8.49$7.64Usually ships in 7-10 business days
1493604-30018-00PIN, DOWEL$2.90$2.61Usually ships in 7-10 business days
15136-18542-00-00POINT, NEUTRAL$7.49$6.74Usually ships in 7-10 business days
