1980 Yamaha IT125 Handlebar - Cable OEM Parts Diagram

Submodel IT125G - 1980

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR - CABLE

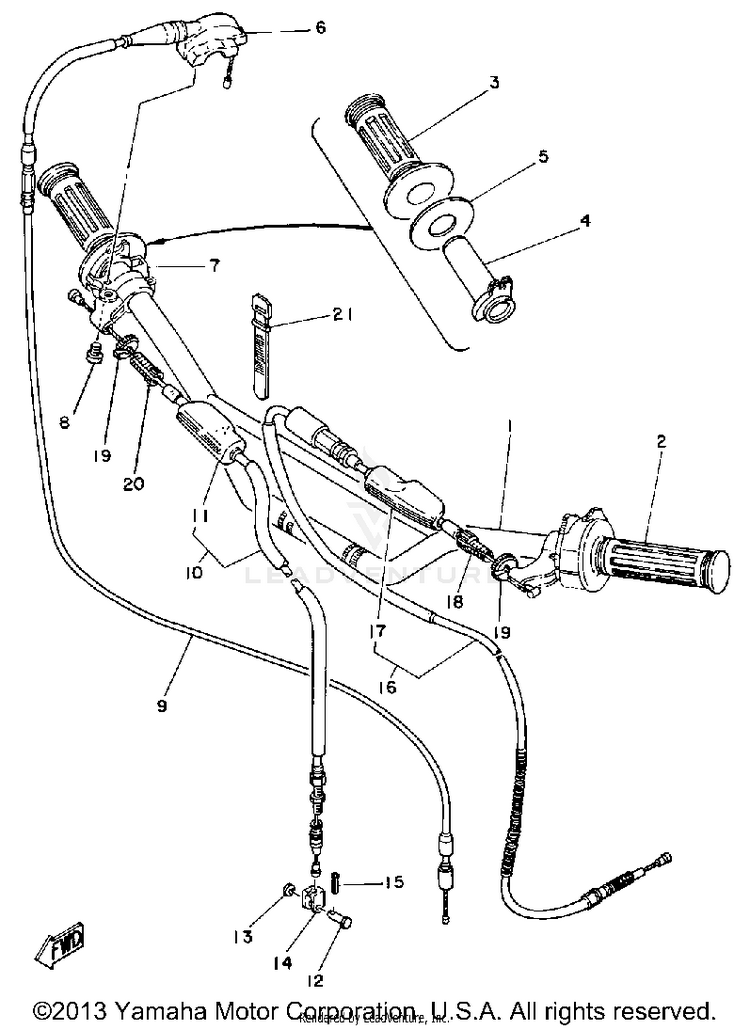

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12A8-26111-00-00HANDLEBAR$140.99$109.972 In-Stock
21E6-26241-00-00GRIP LH$37.99$29.633 In-Stock
3583-26242-00-00GRIP RH (R.H.)$39.99$31.194 In-Stock
422W-26243-00-00

(replaces part #
322-26243-00-00)

TUBE, THROTTLE GUIDE$33.99$26.512 In-Stock
51W1-26249-00-00RING, LEAF$6.99$6.29Not Shipping
6322-26281-00-98CAP, GRIP UPPER | LOW GLOSS BLK$28.99$22.61Not Shipping
7322-26282-00-00CAP, GRIP UNDER | LOW GLOSS BLK$31.99$24.954 In-Stock
897885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
92K5-26311-02-00CABLE, THROTTLE 1$43.99$36.07Not Shipping
1024X-26341-00-00

(replaces part #
3R2-26341-00-00)

CABLE, BRAKE$59.99$46.79Usually ships in 7-10 business days
11498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1290240-08013-00PIN, CLEVIS$9.49$7.401 In-Stock
1390201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
14156-26347-00-00JOINT, CABLE$9.49$7.401 In-Stock
1591490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
163R9-26335-00-00CABLE, CLUTCH$46.99$38.53Usually ships in 7-10 business days
17498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1890123-08002-00

(replaces part #
90123-08013-00)

BOLT$10.49$8.1810+ In-Stock
1990179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
2090123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
21437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
