1980 Yamaha IT125 Headlight OEM Parts Diagram

Submodel IT125G - 1980

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

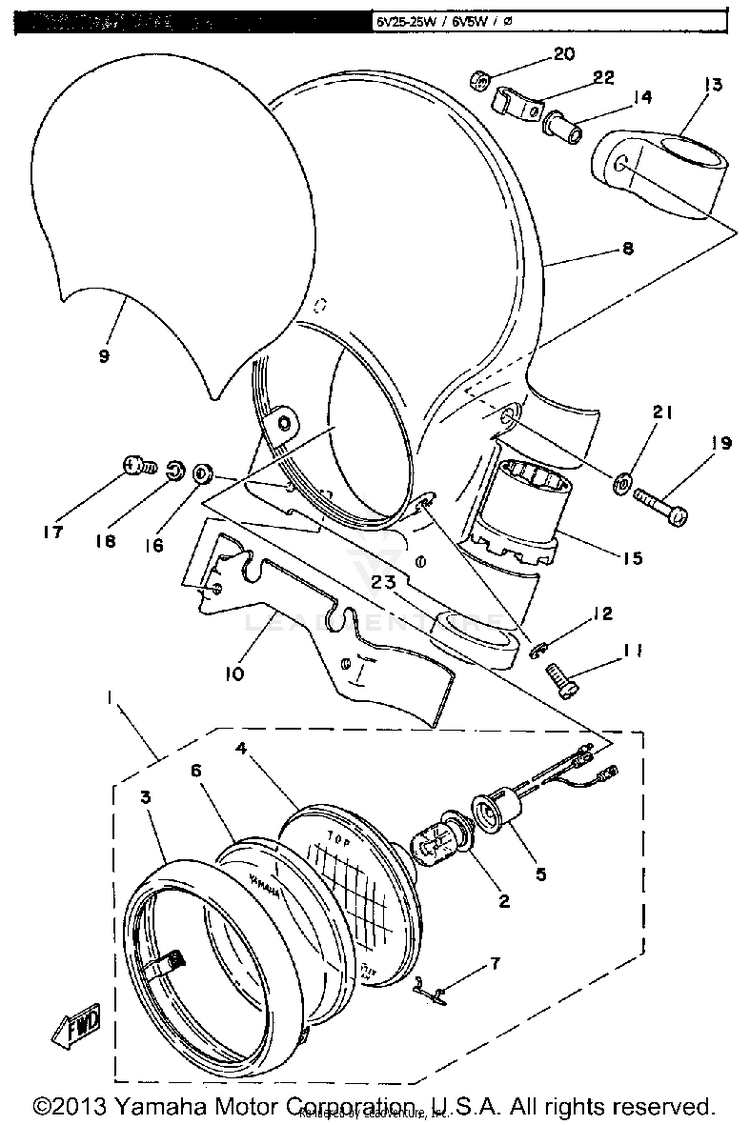

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R8-84110-61-00UNAVAILABLE IN PRICE BOOK | N/A$0.00$0.00Not Shipping
2527-84114-09-XXBULB, HL 6V25/25W$6.49$5.06Not Shipping
33R8-84115-60-00RIM, HEADLIGHT$32.99$27.05Not Shipping
43R8-84120-60-00LENS ASSEMBLY$15.49$12.70Not Shipping
53R8-84140-61-00SOCKET CORD ASSEMBLY$18.06$14.81Not Shipping
63R8-84144-60-00COVER, HEADLIGHT$21.95$18.00Not Shipping
71W2-84324-60-00SPRING, REFLECTOR$8.99$8.09Not Shipping
83R9-84130-00-00BODY ASSEMBLY, HEADLIGHT | SKY BLUE$65.56$51.14Not Shipping
93R8-84141-01-00EMBLEM, HEADLIGHT$9.08$8.17Not Shipping
103R9-84181-00-00BRACKET, LOWER 1$5.86$5.27Usually ships in 7-10 business days
1197885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
133R9-84163-00-00DAMPER$3.76$3.38Usually ships in 7-10 business days
143R8-84133-00-00COLLAR, SCREW$3.40$3.06Not Shipping
153R9-84164-00-00DAMPER$2.58$2.32Not Shipping
1690201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
1797885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1997885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
2090185-06062-00NUT, SELF-LOCKING$10.49$8.60Usually ships in 7-10 business days
2190201-06747-00

(replaces part #
90201-06407-00)

WASHER, PLATE$9.49$7.408 In-Stock
2290462-05005-00CLAMP$10.49$8.183 In-Stock
233R9-84136-00-00DAMPER, HDLT STAY$1.98$1.78Usually ships in 7-10 business days
