1981 Yamaha DT125 Cylinder Head-Cylinder OEM Parts Diagram

Submodel DT125H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

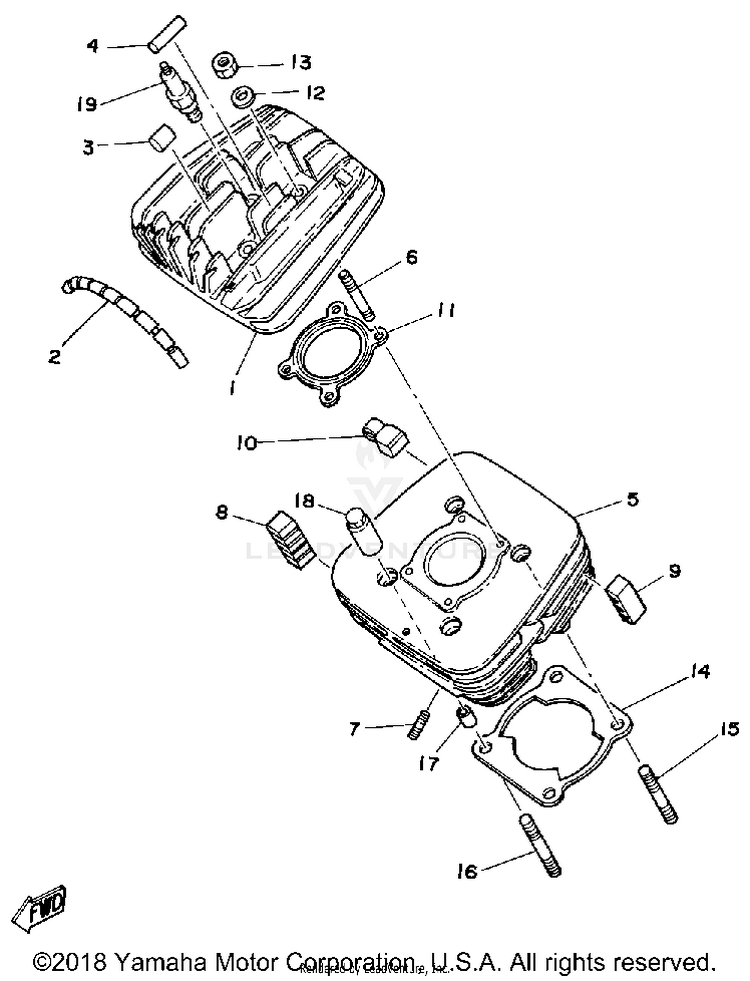

CYLINDER HEAD-CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13J0-11111-00-00HEAD, CYLINDER 1$45.37$37.20Usually ships in 7-10 business days
22A6-11161-00-00ABSORBER 1$14.49$11.88Not Shipping
32A6-11162-00-00ABSORBER 2$7.99$7.19Not Shipping
43LN-2139U-00-00ABSORBER 2$5.99$5.39Not Shipping
52A6-11311-00-00CYLINDER 1$421.99$330.70Usually ships in 7-10 business days
690116-08564-00

(replaces part #
90116-08321-00)

BOLT, STUD$11.49$8.969 In-Stock
790116-06016-00BOLT, STUD$5.99$4.672 In-Stock
82A6-11127-00-00ABSORBER 3$14.99$12.29Not Shipping
92A6-11127-00-00ABSORBER 3$14.99$12.29Not Shipping
102A6-11129-00-00ABSORBER 5$14.49$11.88Not Shipping
112A6-11181-00-00GASKET, CYLINDER HEAD 1$10.99$8.573 In-Stock
1290201-08100-00WASHER, PLATE$9.49$7.4010+ In-Stock
1395333-08600-00NUT$3.80$3.4710+ In-Stock
1418G-11351-02-00

(replaces part #
18G-11351-01-00)

GASKET,CYLINDER$8.49$6.627 In-Stock
1595617-10630-00

(replaces part #
95611-10630-00)

BOLT, STUD$5.99$5.39Not Shipping
1695617-10640-00

(replaces part #
95611-10640-00)

BOLT, STUD$2.75$2.48Not Shipping
1799530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
1890179-10021-00

(replaces part #
90179-10201-00)

NUT$28.99$22.616 In-Stock
19BR8-ES000-00-00

(replaces part #
NGK-B8ES0-00-00)

BR8ES NGK SCREW TOP$4.45$4.2410+ In-Stock
