1981 Yamaha DT125 Handle Switch-Lever OEM Parts Diagram

Submodel DT125H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH-LEVER

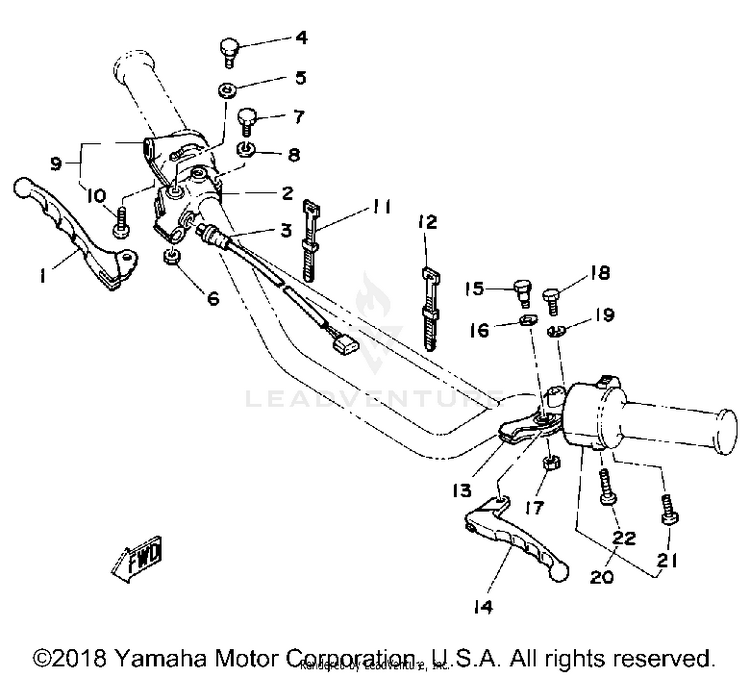

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12H0-83922-31-00

(replaces part #
2H0-83922-30-00)

LEVER R | LOW GLOSS BLK$31.99$26.23Usually ships in 7-10 business days
2361-82920-93-00HOLDER, LEVER 2 (36182-92131-$119.99$93.59Not Shipping
31M1-83980-31-00

(replaces part #
1M1-83980-30-00)

FRONT STOP SWITCH AS$30.99$25.41Usually ships in 7-10 business days
490109-061F3-00

(replaces part #
90109-06797-00)

BOLT$8.49$6.623 In-Stock
590201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
695617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
797013-06022-00

(replaces part #
97003-06022-00)

BOLT (661)$1.40$1.203 In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
91R6-83976-01-00SWITCH, HANDLE 1$72.99$56.933 In-Stock
1098580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
11437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
12437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
133Y6-82911-00-00HOLDER, LEVER 1$60.99$47.573 In-Stock
142H0-83912-31-00

(replaces part #
2H0-83912-30-00)

LEVER L | LOW GLOSS BLK$34.99$27.292 In-Stock
1590109-061F3-00

(replaces part #
90109-06797-00)

BOLT$8.49$6.623 In-Stock
1690201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1795617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1897013-06022-00

(replaces part #
97003-06022-00)

BOLT (661)$1.40$1.203 In-Stock
1992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
201M1-83973-50-00SWITCH, HANDLE 3$120.99$94.37Not Shipping
2198580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
2298517-05030-00

(replaces part #
98501-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
