1981 Yamaha DT80 Crankcase Dt80h - J - K OEM Parts Diagram

Submodel DT80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

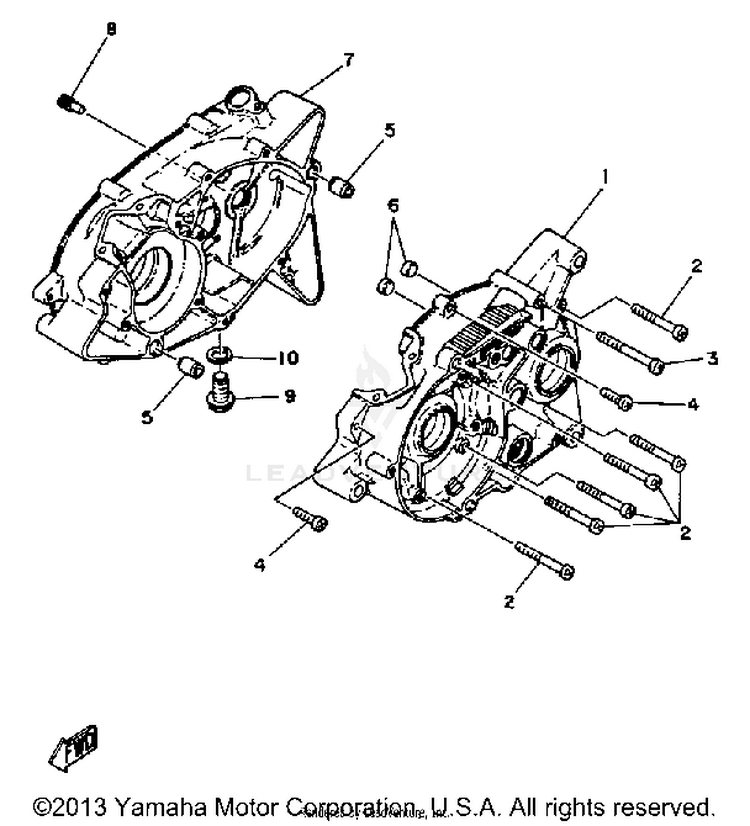

CRANKCASE DT80H - J - K

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1374-15111-00-00CRANKCASE 1$136.99$106.85Usually ships in 7-10 business days
298580-06550-00SCREW, PAN HEAD$9.49$7.409 In-Stock
398580-06555-00

(replaces part #
98580-06055-00)

SCREW,PANHEAD$5.99$4.672 In-Stock
498517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
599530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
690334-12009-00PLUG, STRAIGHT$5.99$5.39Usually ships in 7-10 business days
7374-15121-02-00CRANKCASE 2$186.99$145.85Usually ships in 7-10 business days
8492-15387-00-00STOPPER$6.99$6.29Usually ships in 7-10 business days
990340-12005-00PLUG, STRAIGHT SCREW$9.49$7.405 In-Stock
1090430-12207-00GASKET$8.49$6.6210+ In-Stock
