1981 Yamaha DT80 Headlight Dt80h - J - K OEM Parts Diagram

Submodel DT80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

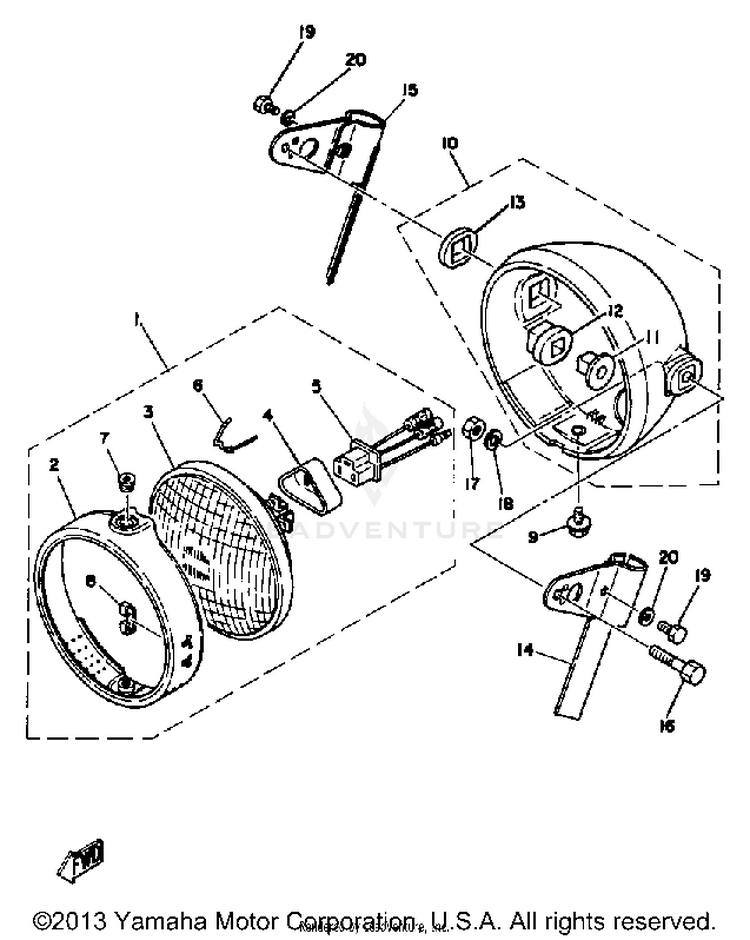

HEADLIGHT DT80H - J - K

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11M1-84110-61-00HEADLIGHT UNIT ASSEMBLY$23.35$19.15Not Shipping
23J0-84195-60-00

(replaces part #
1M1-84195-61-00)

RING, RETAINING$62.99$49.13Usually ships in 7-10 business days
3498-84120-61-00LENS ASSEMBLY$88.99$69.41Not Shipping
4341-84397-61-00COVER, SOCKET$26.99$22.13Usually ships in 7-10 business days
5371-84312-60-00SOCKET$31.99$26.23Usually ships in 7-10 business days
61M1-84124-60-00SPRING, SET$9.49$8.54Usually ships in 7-10 business days
71M1-84133-60-00COLLAR, SCREW$8.49$7.64Usually ships in 7-10 business days
8498-84128-60-00SPACER$21.59$17.70Usually ships in 7-10 business days
91M1-84137-60-00BOLT, SPECIAL$7.49$6.74Usually ships in 7-10 business days
101M1-84130-60-00BODY ASSEMBLY, HEADLIGHT (1M1-8 | YAMAHA BLK$123.99$96.71Usually ships in 7-10 business days
11498-84145-60-00COLLAR, BODY FITTING$7.49$6.74Usually ships in 7-10 business days
12498-84163-60-00DAMPER$8.49$7.64Usually ships in 7-10 business days
131M1-84164-60-00DAMPER$28.99$23.77Usually ships in 7-10 business days
142F4-84118-00-00STAY, HEADLIGHT 1$15.68$12.86Not Shipping
152F4-84119-00-00STAY, HEADLIGHT 2$20.99$17.21Not Shipping
1697013-08035-00

(replaces part #
97303-08035-00)

BOLT$6.49$5.0610+ In-Stock
1795333-08600-00NUT$3.80$3.4710+ In-Stock
1892990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1997013-06012-00BOLT$6.49$5.0610+ In-Stock
2090201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
