1981 Yamaha MX100 Front Fork Mx100h - J - K OEM Parts Diagram

Submodel MX100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

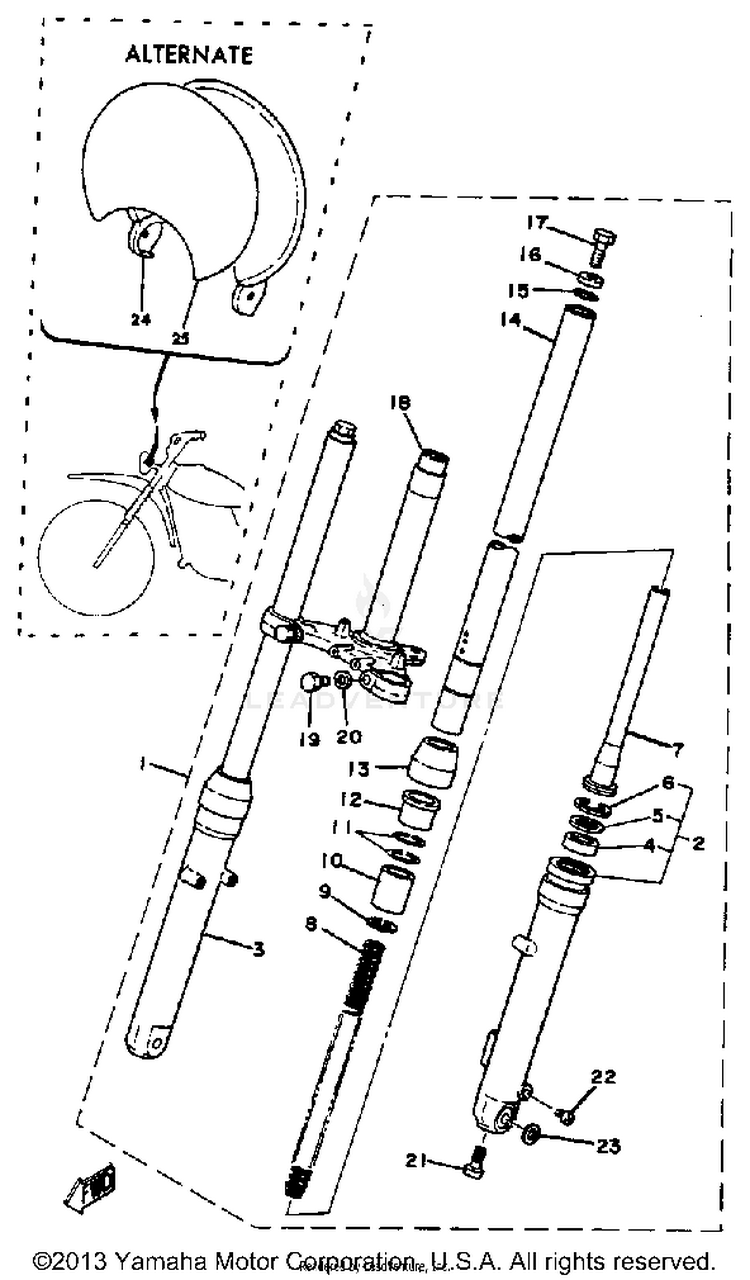

FRONT FORK MX100H - J - K

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T9-23101-00-00FRONT FORK ASSEMBLY$164.99$128.69Not Shipping
21T9-23126-00-35TUBE, OUTER (LEFT) | SILVER$201.99$157.55Usually ships in 7-10 business days
3462-23136-02-35TUBE, OUTER 2 | SILVER$70.99$55.37Usually ships in 7-10 business days
493110-27010-00

(replaces part #
462-23145-02-00)

OIL SEAL (5R6)$29.99$23.394 In-Stock
5462-23146-02-00WASHER, OIL SEAL$4.95$4.46Not Shipping
6462-23156-02-00CLIP, OIL SEAL$9.49$8.54Not Shipping
7462-23170-02-00CYLINDER COMP., FRONT FORK$87.99$68.63Usually ships in 7-10 business days
81T9-23141-00-00SPRING, FRONT FORK$34.99$28.69Usually ships in 7-10 business days
9462-23183-02-00CIRCLIP$6.99$6.29Usually ships in 7-10 business days
10462-23171-02-00PISTON, FRONT FORK$25.99$21.31Not Shipping
11462-23157-02-00RING, PISTON$5.49$4.94Not Shipping
12462-23125-02-00METAL, SLIDE 1$14.49$11.88Not Shipping
13462-23144-02-00SEAL, DUST$17.99$14.75Not Shipping
143UL-23124-00-00

(replaces part #
1T9-23124-00-00)

TUBE, INNER 1$138.99$108.41Not Shipping
15462-23114-02-00GASKET$6.99$6.29Not Shipping
16276-23112-50-00WASHER, CAP$16.99$13.93Usually ships in 7-10 business days
17205-23111-40-00BOLT, CAP$11.99$9.83Usually ships in 7-10 business days
181T9-23340-00-90UNDER BRACKET COMP. | UNI CHROME (BLACK)$297.99$232.43Usually ships in 7-10 business days
1997013-10030-00BOLT (8J7) (97303-10030-00)$11.49$9.42Usually ships in 7-10 business days
2092990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
2197885-06025-00

(replaces part #
98580-06025-00)

SCREW, PAN HEAD$5.49$4.94Usually ships in 7-10 business days
22451-23119-01-00PLUG, DRAIN$5.99$5.39Usually ships in 7-10 business days
23462-23392-02-00WASHER, SPECIAL$5.99$5.39Usually ships in 7-10 business days
241W2-23485-00-00PLATE, NUMBER | ALT. PRT$42.89$35.17Not Shipping
251W2-23395-00-00EMBLEM | ALT. PRT$11.99$9.83Not Shipping
