1981 Yamaha MX100 Steering Mx100h - J - K OEM Parts Diagram

Submodel MX100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING MX100H - J - K

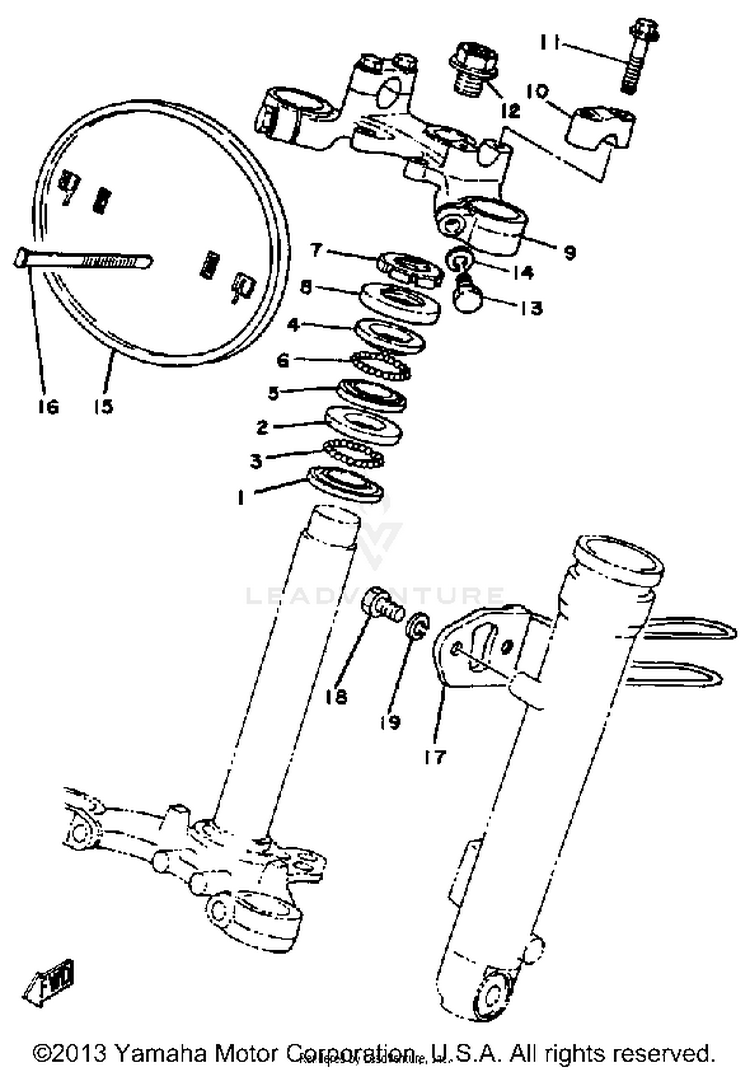

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
2B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
393501-04011-00BALL$9.49$7.4010+ In-Stock
4BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
5BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
693503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
790179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
8122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
9354-23435-00-33CROWN, HANDLE | YAMAHA BLK$93.99$73.31Usually ships in 7-10 business days
101E6-23441-00-00HOLDER, HANDLE UPR (1E6-23441-0 | LOW GLOS BLK$30.99$24.1710+ In-Stock
1195817-08035-00

(replaces part #
95811-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1290105-14220-00

(replaces part #
90105-14136-00)

BOLT, FLANGE$5.49$4.285 In-Stock
1397013-08030-00

(replaces part #
97313-08030-00)

BOLT$3.80$3.2710+ In-Stock
1492990-08100-00

(replaces part #
92903-08100-00)

WASHER, SPRING$5.60$4.3710+ In-Stock
153R0-23485-00-00PLATE, NUMBER$17.49$13.64Not Shipping
162X4-23489-00-00BAND$3.40$2.92Not Shipping
171T9-23318-00-00HOLDER, CABLE 1$34.99$28.69Usually ships in 7-10 business days
1897013-06012-00BOLT$6.49$5.0610+ In-Stock
1992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
