1981 Yamaha QT50 Flasher Light OEM Parts Diagram

Submodel QT50H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

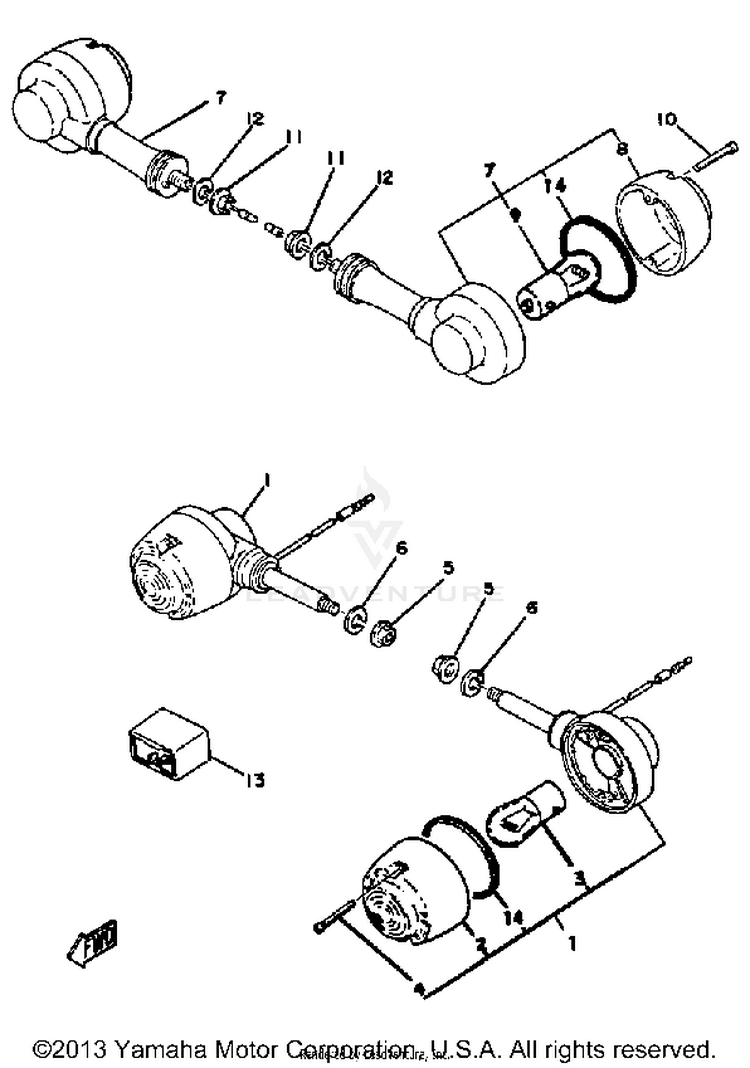

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L9-83310-60-00FRT FLSHR LITE ASSEMBLYASSY 1$53.99$42.11Usually ships in 7-10 business days
23L8-83312-60-00LENS, FLASHER$8.99$8.09Not Shipping
3115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
497780-40535-00SCREW, TAPPING (FJ1)$3.20$2.88Not Shipping
595303-08800-00NUT (CROWN) (93501-08800-00)$10.49$8.184 In-Stock
692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
73L8-83330-60-00R FLSHR LITE ASSEMBLY$66.99$52.25Usually ships in 7-10 business days
83L8-83312-60-00LENS, FLASHER$8.99$8.09Not Shipping
9115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
1097780-40535-00SCREW, TAPPING (FJ1)$3.20$2.88Not Shipping
1195314-10600-00

(replaces part #
95303-10600-00)

NUT$2.55$2.19
1292990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
133BK-83350-00-00FLASHER RELAY ASSEMBLY$131.99$102.95Usually ships in 7-10 business days
14183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
