1981 Yamaha QT50 Handle Switch-Lever OEM Parts Diagram

Submodel QT50H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

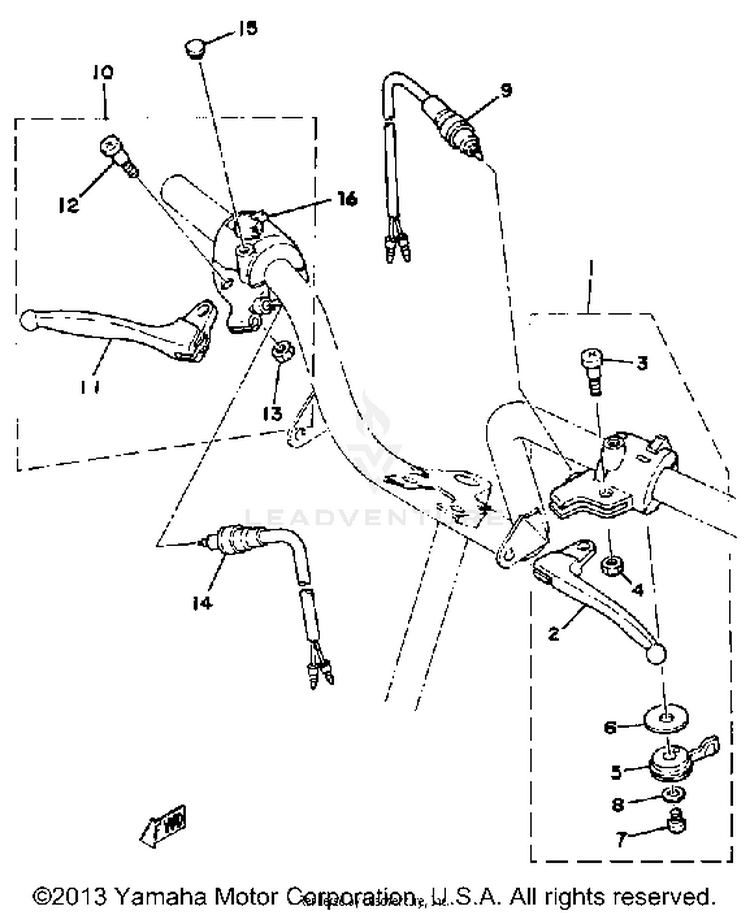

HANDLE SWITCH-LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L8-W8271-01-00LEVER HOLDER ASSEMBLY.L (3L8-W8$108.99$85.01Usually ships in 7-10 business days
2137-83912-02-38LEVER L | CLEAR BUFFING$30.99$24.174 In-Stock
390149-05120-00SCREW, SPEC''L SHAPE$10.49$8.604 In-Stock
495617-05100-00

(replaces part #
95601-05100-00)

NUT, U$10.49$8.1810+ In-Stock
53LA-83941-00-00

(replaces part #
439-83941-02-00)

LEVER, STARTER$9.49$8.54Usually ships in 7-10 business days
690209-10131-00WASHER$10.49$8.60Usually ships in 7-10 business days
797885-06008-00

(replaces part #
98580-06008-00)

SCREW, PAN HEAD$1.20$1.032 In-Stock
892990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
93E1-83980-09-00

(replaces part #
3E1-83980-02-00)

FRONT STOP SWITCH AS$39.99$32.79Usually ships in 7-10 business days
103L8-W8292-30-00LEVER HOLDER ASSEMBLY R (3L8-82$65.99$51.47Usually ships in 7-10 business days
112N3-83922-00-00LEVER R$33.99$26.513 In-Stock
1290149-05120-00SCREW, SPEC''L SHAPE$10.49$8.604 In-Stock
1395617-05100-00

(replaces part #
95601-05100-00)

NUT, U$10.49$8.1810+ In-Stock
143E1-83980-09-00

(replaces part #
3E1-83980-02-00)

FRONT STOP SWITCH AS$39.99$32.79Usually ships in 7-10 business days
1590338-07124-00

(replaces part #
90338-07011-00)

PLUG$11.49$8.963 In-Stock
163L8-82000-KN-OBQT 50 SWITCH KNOB$2.58$2.32Usually ships in 7-10 business days
