1982 Yamaha IT250 Cylinder OEM Parts Diagram

Submodel IT250J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

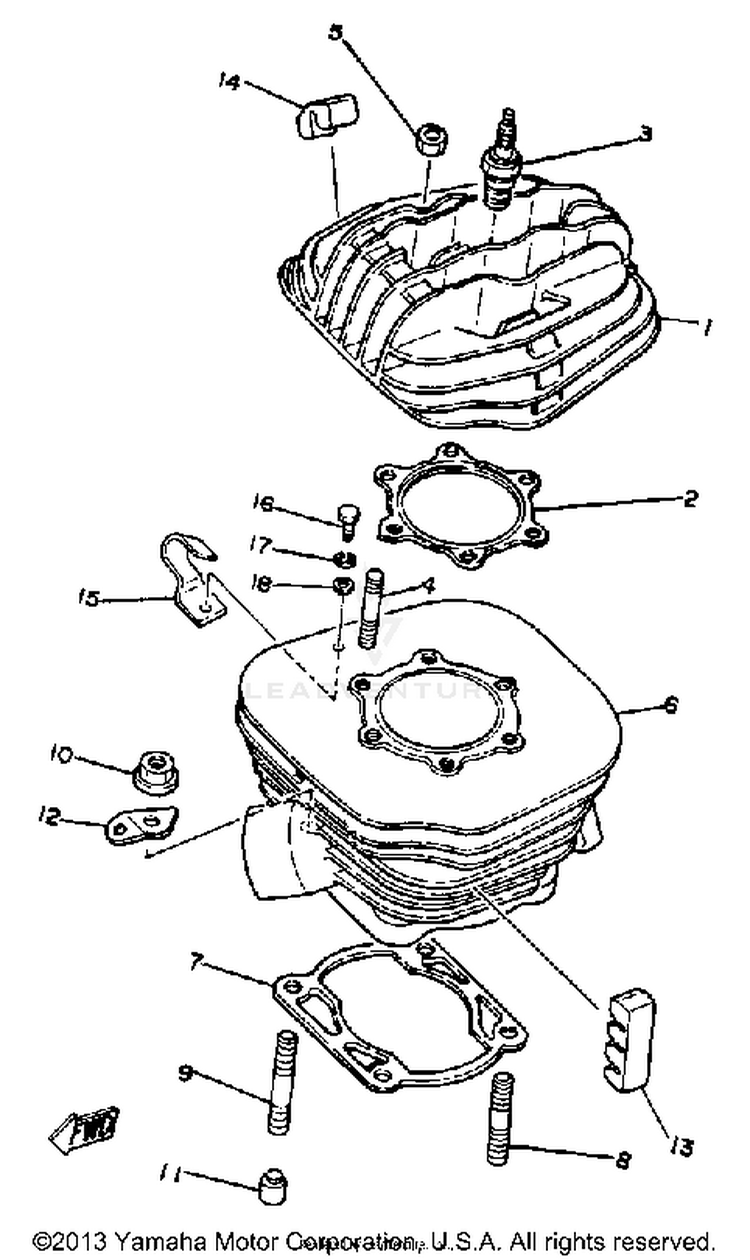

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R4-11111-00-00HEAD, CYLINDER 1$104.99$81.89Usually ships in 7-10 business days
21W3-11181-00-00GASKET, CYLINDER HEAD 1$31.99$26.23Usually ships in 7-10 business days
3CMP-N2G00-00-00CHAMPION N2G 10PK | LM$7.49$6.74Not Shipping
490116-08394-00BOLT, STUD$5.49$4.2810+ In-Stock
590179-08491-00NUT$2.80$2.4110+ In-Stock
64V5-11311-00-00CYLINDER 1$648.99$542.40Not Shipping
73R4-11351-01-00

(replaces part #
3R4-11351-00-00)

GASKET,CYLINDER$10.99$8.576 In-Stock
890116-10313-00BOLT, STUD$4.15$3.74Not Shipping
990116-10314-00BOLT, STUD$4.80$4.1310+ In-Stock
1095704-10500-00

(replaces part #
95701-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1199530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
123R4-14619-01-00HOOK, SPRING$5.24$4.72Not Shipping
132A6-11127-00-00

(replaces part #
2N6-11127-00-00)

ABSORBER 3$14.99$12.29Not Shipping
144V5-11161-00-00ABSORBER 1$10.54$8.64Not Shipping
154V5-1131E-00-00HOLDER 1$7.46$6.71Usually ships in 7-10 business days
1697017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
1792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1890201-063J2-00WASHER, PLATE$6.49$5.0610+ In-Stock
